ANVIL 3X9.NRF 3 in Nominal Reducing Companion Flange 125 lb

Product Description

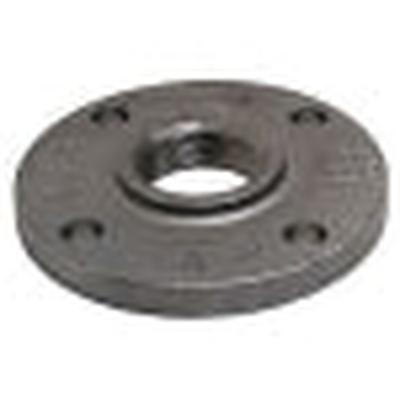

The ANVIL 3X9.NRF is a reducing companion flange used in piping systems. This flange has a thread connection type and a nominal size of three inches. It is designed for reliable use in various applications.

• Material: Cast Iron
• Galvanized finish for corrosion resistance
• Pressure class of 125 lb

Product Highlights

This companion flange is ideal for connecting pipes and fittings in a secure manner. It is manufactured with four bolt holes for simple installation.

Product Information

Standard Information

• Connection Type: Thread
• Domestic/Import: Domestic

Technical Specifications

• Hub Diameter: 4-1/4 inches
• Length Through Hub: 1-3/16 inches
• Outside Diameter: 9 inches
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 450 degrees F
• Thickness: 15/16 inches
• Series: FIG 1016
• Number of Bolt Holes: 4
