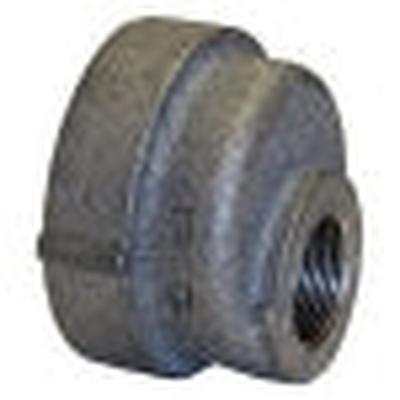

ANVIL 3X1B.BER Eccentric Reducer 3 x 1-1/4 in Nominal 125 lb

Product Description

The ANVIL 3X1B.BER is an eccentric reducer designed for plumbing and HVAC applications. It features a nominal size of three by one and one-quarter inches and a FNPT end style. This reducer is made from cast iron with a black oxide finish, ensuring durability and resistance to corrosion.

• Type: Eccentric Reducer
• Material: Cast Iron
• Pressure Class: 125 lb

Product Highlights

This reducer is ideal for transitioning between pipe sizes in various installations. Its design allows for effective flow control and pressure management in systems.

Product Information

Standard Information

• Domestic/Import: Domestic
• End Style: FNPT

Technical Specifications

• Length: 2.5625 inches
• Material: Cast Iron
• Nominal Size: 3 x 1-1/4 inches
• Pressure Class: 125 lb
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 368
• Temperature Rating: -20 to 150 degrees F
