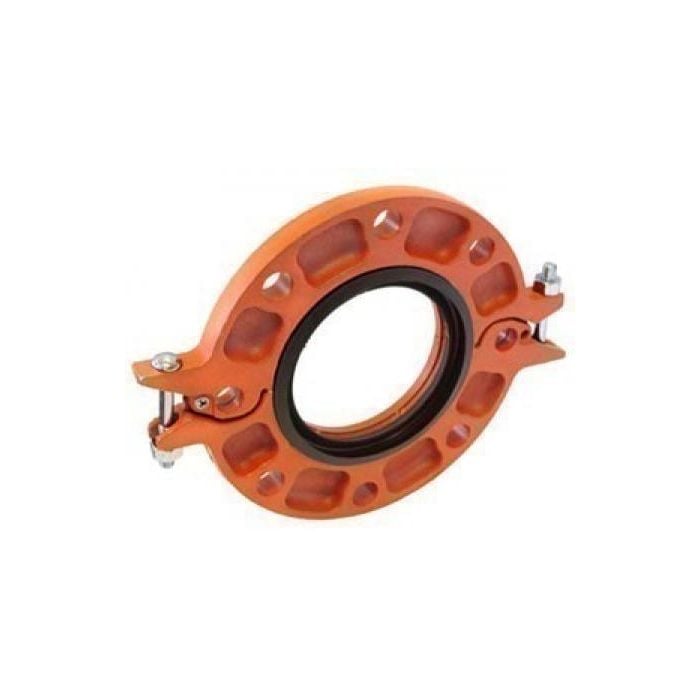

Anvil 390201002 Painted End Gasket Flange 2 in

Product Description

The ANVIL 390201002 is a 2-inch painted end gasket flange designed for use in piping systems where a reliable, sealed pipe termination or connection point is required. This flange is part of the Anvil 7012 series and provides a gasket-seating face suitable for flanged joint assemblies. The painted finish offers basic surface protection during handling and installation. Plumbers and pipefitters install this type of flange in commercial and industrial piping runs where flanged connections are specified.

This end gasket flange is suited for use in mechanical piping systems including HVAC hydronic loops, industrial process piping, and general plumbing distribution lines. The 2-inch size fits standard 2-inch pipe and mates with corresponding flanged fittings or equipment connections. It is intended for installations where a bolted flanged joint with a gasket is required at a pipe endpoint or equipment interface.

Key Features

• 2-inch pipe size for standard flanged joint assemblies
• Painted finish provides surface protection against handling wear
• Gasket-seating face design ensures proper gasket compression and sealing
• Part of the Anvil 7012 flange series for broad fitment in standard piping applications

Compatibility

Designed as an OEM-style replacement or standard service fitting for 2-inch flanged piping systems requiring an end gasket flange configuration.

Installation Notes

Installation of pipe flanges is typically performed by licensed plumbers or pipefitters. Shut off and depressurize the piping system completely before removing or installing any flanged component. Follow applicable IPC and ASME B16 standards for flange bolt torque sequences and gasket selection. Inspect the gasket seating surface for damage before assembly to ensure a proper seal.

Technical Specifications

• Pipe Size: 2 inches
• Finish: Painted
• Series: 7012

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 390201002
