Anvil 390171163 Clamp Tee Female Outlet 3x1-1/2 Ductile Iron

Product Description

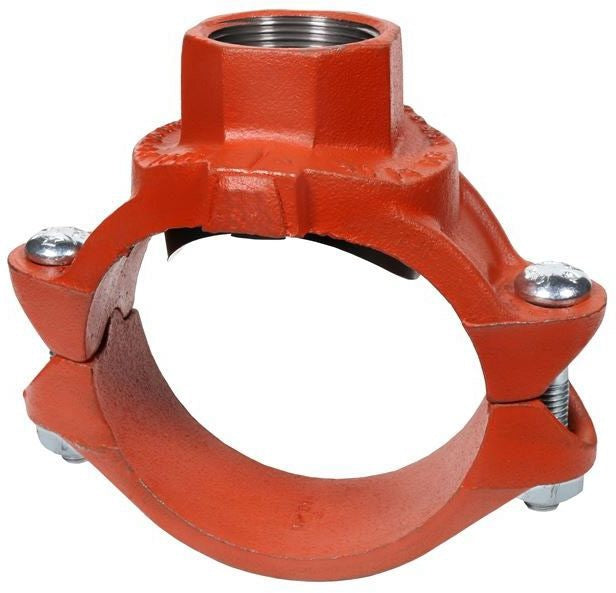

The ANVIL 390171163 is a grooved clamp tee fitting with a single female threaded outlet, manufactured from ductile iron with an orange painted finish. This tee-type mechanical fitting connects a branch outlet to a grooved piping run using a U-bolt mounting configuration. The outlet connection is female threaded, allowing direct connection to threaded pipe or fittings. Built to ASTM A536 Grade 65-45-12 ductile iron material specification and rated to 500 psi, this fitting is suited for demanding piping systems across multiple trades. Listings include FM approval and UL certification for both Canada and the US, making it a code-compliant choice for fire protection and related applications.

This fitting is designed for use in plumbing, mechanical, HVAC, industrial, fire protection, mining, oil, and gas piping systems. The 3 inch by 1-1/2 inch nominal pipe size configuration handles a main run of 3 inches with a reducing 1-1/2 inch female threaded branch outlet. It is appropriate for both commercial and industrial installations where grooved piping systems are specified. Licensed contractors and system installers working with grooved-end piping components in fire suppression, process, or mechanical systems will find this fitting meets standard layout requirements.

Key Features

• Ductile iron construction per ASTM A536 Grade 65-45-12 for strength and durability in high-pressure service
• 500 psi pressure rating suitable for fire protection and industrial piping systems
• Single female threaded branch outlet for direct threaded pipe connection
• U-bolt mounting type compatible with grooved piping system installation methods
• Orange painted finish for corrosion resistance and system identification
• FM approved and UL listed for Canada and US — supports code-compliant fire protection installations

Compatibility

Designed for use with grooved piping systems in 3 inch main line by 1-1/2 inch branch configurations. Compatible with plumbing, mechanical, HVAC, industrial, fire protection, mining, oil, and gas applications as stated by the manufacturer. Conforms to applicable standards for grooved clamp tee fittings with female threaded outlets.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or fire protection contractor in accordance with applicable mechanical and plumbing codes, including NFPA 13 where fire protection systems are involved. Depressurize and isolate the piping system completely before beginning work. Verify that grooved pipe ends meet the dimensional requirements for the coupling and that the female threaded outlet engagement meets minimum thread engagement standards. Do not overtighten the U-bolt fasteners beyond the fitting manufacturer's specified assembly procedure.

Technical Specifications

• Material: Ductile Iron
• Material Specification: ASTM A536 Grade 65-45-12
• Finish: Orange Painted
• Nominal Pipe Size: 3 inches x 1-1/2 inches
• Pressure Rating: 500 psi
• Outlet Type: Single Female Threaded
• Mounting Type: U-Bolt
• Fitting Type: Tee (Clamp)
• Certifications: FM Approved, UL Listed (Canada and US)
• Applications: Plumbing, Mechanical, HVAC, Industrial, Fire Protection, Mining, Oil, Gas
• Packaging Quantity: 350 per box
• Warranty: 1 Year
• Model: 7045

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 390171163
