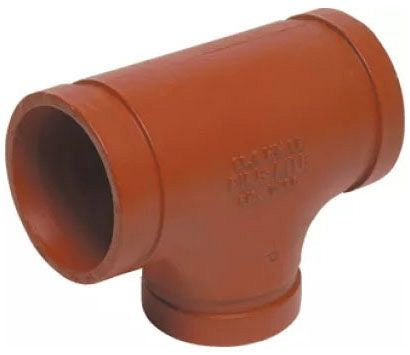

Anvil 390017309 Grooved Reducing Tee 2.5x2.5x2 in

Product Description

The ANVIL 390017309 is a grooved reducing tee fabricated from carbon steel with an orange painted finish. It connects three sections of grooved pipe in a reducing configuration, directing flow from two 2-1/2 inch run ends to a 2 inch branch outlet. The 0.203 inch wall thickness meets Schedule 40 Standard schedule requirements. This fitting is manufactured to ASTM A53 Grade B material specification and carries UL (US and Canada), cUPC, FM, and NSF/ANSI 61 listings, making it appropriate for fire protection, HVAC hydronic, and commercial plumbing piping systems. Installation is performed by licensed pipefitters and mechanical contractors.

This reducing tee is suited for commercial and industrial piping applications where a grooved mechanical joining system is specified. Typical installations include hydronic heating and cooling distribution, fire suppression mains, and general industrial process piping. The grooved-by-grooved-by-grooved end connection style allows fast mechanical coupling without welding or threading. The lead-free construction satisfies potable water system requirements where NSF/ANSI 61 compliance is mandated.

Key Features

• Reducing configuration: 2-1/2 inch x 2-1/2 inch x 2 inch nominal sizes
• Grooved x grooved x grooved end connections for mechanical coupling
• Carbon steel construction, ASTM A53 Grade B material specification
• Schedule 40 Standard wall, 0.203 inch wall thickness
• Orange painted finish for corrosion resistance and identification
• Lead-free; listed to UL (US and Canada), cUPC, FM, and NSF/ANSI 61

Compatibility

Designed for use with grooved mechanical coupling systems in Schedule 40 carbon steel piping. Compatible with standard grooved couplings and fittings sized for 2-1/2 inch and 2 inch nominal pipe. Verify coupling manufacturer tolerances before installation.

Installation Notes

Installation should be performed by a qualified pipefitter or licensed mechanical contractor in accordance with applicable local mechanical and plumbing codes. Depressurize and drain the piping system completely before removing or installing any grooved fittings. Inspect gaskets and coupling housings for damage prior to assembly. Do not exceed the pressure and temperature ratings specified by the coupling manufacturer for the complete grooved joint assembly.

Technical Specifications

• Nominal Size: 2-1/2 x 2-1/2 x 2 inches
• End Connection: Grooved x Grooved x Grooved
• Wall Thickness: 0.203 inches
• Schedule: 40 Standard
• Center to End Distance: 3-3/4 inches
• Material: Carbon Steel, ASTM A53 Grade B
• Finish: Orange Painted
• Lead-Free: Yes
• Certifications: UL (US and Canada), cUPC, FM, NSF/ANSI 61
• Model: 7061

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 390017309
