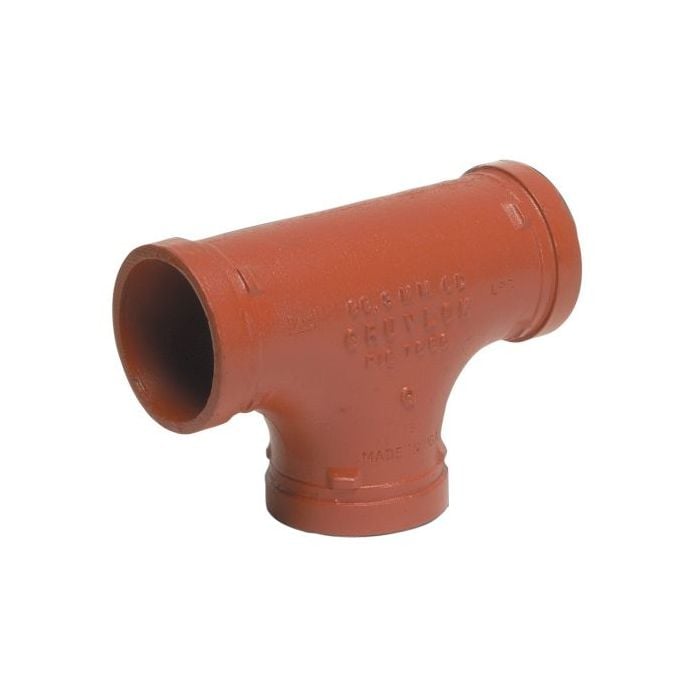

Anvil 390016905 Grooved Pipe Tee 5 Inch Ductile Iron

Product Description

The ANVIL 390016905 is a Figure 7060 standard grooved pipe tee designed for use in piped mechanical systems where a branch connection is required. Manufactured from ductile iron with a rust-inhibiting paint finish, this tee provides a reliable grooved-end connection at all three ports. Grooved fittings in this configuration are typically installed by licensed plumbers and pipefitters working on fire suppression, HVAC hydronic, and industrial piping systems. The domestic manufacturing designation indicates U.S.-origin production. This fitting is suited for moderate-pressure piping applications where grooved coupling systems are the specified connection method.

The ANVIL 390016905 Figure 7060 tee is used in 5-inch grooved piping systems across commercial and industrial installations. Typical applications include fire protection sprinkler mains, chilled and hot water hydronic distribution loops, and process piping where a grooved mechanical joint is preferred over welded or flanged alternatives. The grooved-end configuration accepts standard grooved couplings and housings compatible with 5-inch pipe.

Key Features

• 5-inch grooved end connections on all three ports for secure mechanical joint assembly
• Ductile iron construction provides high strength and impact resistance compared to cast iron
• Rust-inhibiting paint finish for corrosion protection during storage and service
• Figure 7060 standard tee geometry allows a full-size branch takeoff from the run
• Domestic manufacture supports project specifications requiring U.S.-origin material

Compatibility

Designed as an OEM-style grooved fitting for use with standard grooved mechanical couplings and housings rated for 5-inch pipe in commercial fire protection, HVAC hydronic, and industrial piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical codes and the authority having jurisdiction. Depressurize and drain the piping system completely before removing or installing grooved fittings. Inspect the pipe groove and gasket seating surface for damage before assembling the coupling housing. Follow the coupling manufacturer's torque and bolt-tightening sequence to achieve a proper seal.

Technical Specifications

• Figure Number: 7060
• Size: 5 inches
• Connection Type: Grooved
• Material: Ductile Iron
• Finish: Rust Inhibiting Paint
• Origin: Domestic

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 390016905
