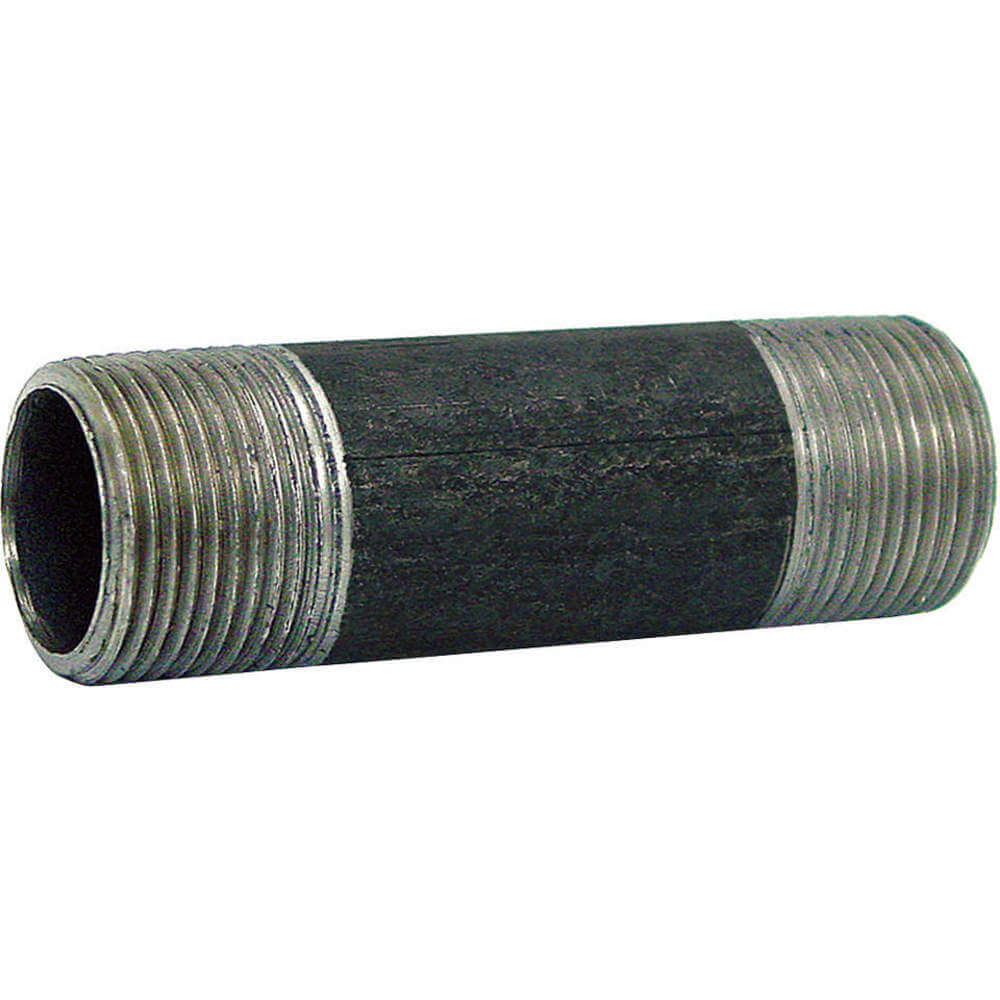

Anvil 330041807 FIG 339 Standard Pipe Nipple, 2-1/2 inx4 in L MNPT

Product Description

The ANVIL 330041807 FIG 339 is a standard pipe nipple with a size of 2-1/2 inx4 in L and MNPT connection. Constructed from steel with a SCH 40/STD schedule, this pipe nipple is welded for durability. It is suitable for air, gas, non-potable water, oil, and steam applications.

• Standard Pipe Nipple
• Steel construction
• Welded
• Threaded At Both Ends

Product Highlights

The Anvil standard pipe nipple features steel construction and welded design.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 330041807
• Country of Origin: US

Technical Specifications

• Material: Steel
• Type: Standard Pipe Nipple
• Size: 2-1/2 inx4 in L
• Connection: MNPT
• Schedule: SCH 40/STD
• Welded: Welded
• Category: Pipe Nipples
• Item: Nipple
• Application: Air, Gas, Non-Potable Water, Oil, Steam
• Basic Connection Type: Threaded At Both Ends
• Body Material: Steel
• Fitting Compatibility: Schedule 40
• Inside Dia.: 2.469"
• Inside Diameter: 2 15/32"
• Length: 4"
• Max. Pressure: 150 psi
• Maximum Operating Pressure: 300 psi @ 150°F
• Maximum Steam Pressure: 150 psi @ 360°F
• Metal Pipe Construction: Welded
• Nominal Pipe Size: 2 1/2"
• Outside Dia.: 2 7/8"
• Overall Length: 4"
• Pipe Size: 2 1/2"
• Pipe Weld Type: Continuous Weld
• Seamless/welded: Welded
• Side A Connection Type: Threaded
• Side A Gender: Male
• Side A Thread Type: NPT
• Side B Connection Type: Threaded
• Side B Gender: Male
• Side B Thread Type: Npt
• Standards: Astm A53 Type F, Astm A733, Grade A
• Thread Configuration: Threaded On Both Ends
• Wall Thickness: 0.188"
