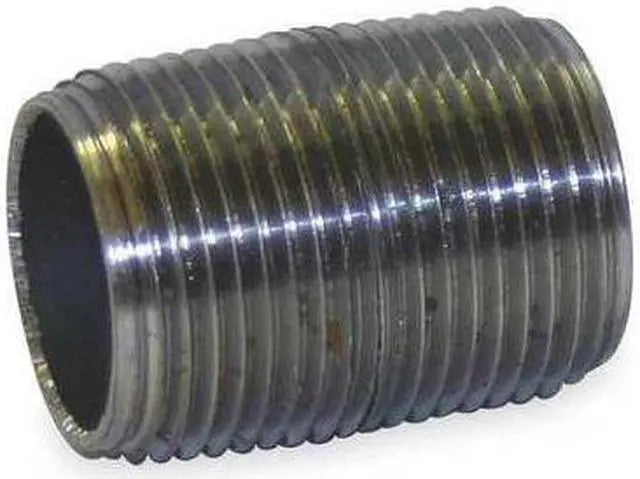

Anvil 330009804 FIG 339 Standard Pipe Nipple 3/8 inx1 in L MNPT

Product Description

The ANVIL 330009804 FIG 339 is a standard pipe nipple with a size of 3/8 inx1 in L and MNPT connection. Constructed from steel with a welded design, this pipe nipple conforms to SCH 40/STD standards. It is suitable for use in air, gas, non-potable water, oil, and steam applications.

• Standard pipe nipple
• Steel construction
• Black finish
• SCH 40/STD
• Welded

Product Highlights

This steel pipe nipple is designed for various applications, including air, gas, and steam, with a welded construction.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 330009804
• Country of Origin: USA

Technical Specifications

• Material: Steel
• Type: Standard Pipe Nipple
• Size: 3/8 inx1 in L
• Connection: MNPT
• Schedule: SCH 40/STD
• Construction: Welded
• Color: Black
• Category: Pipe Nipples
• Model: 330009804
• Application: Air, Gas, Non-Potable Water, Oil, Steam
• Fitting Compatibility: Schedule 40
• Inside Diameter: 31/64 in
• Material Grade: Grade A
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Maximum Steam Pressure: 150 psi @ 360 Degrees F
• Metal Pipe Construction: Welded
• Nominal Pipe Size: 3/8 in
• Outside Diameter: 43/64 in
• Overall Length: 1 in
• Pipe Weld Type: Continuous Weld
