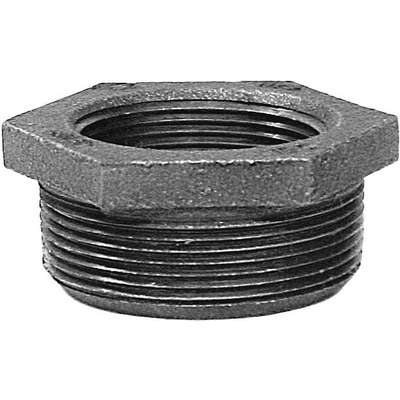

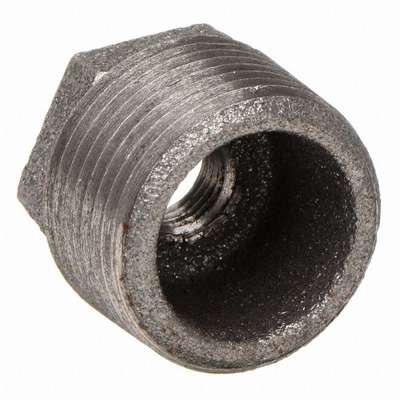

Anvil 318906922 Hex Bushing 1 in. x 1/8 in.

Product Description

The ANVIL 318906922 hex bushing is suitable for low-pressure plumbing applications, including air, water, natural gas, and steam. Constructed from malleable iron, this Class 150 fitting conforms to ASME B16.3 and B16.39 standards. It is designed for use with pipe schedule 40.

• Constructed from malleable iron conforming to ASTM A-197
• Approved by UL and FM
• Suitable for air, water, natural gas, and steam

Product Highlights

The Anvil 318906922 hex bushing is ideal for low-pressure plumbing applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 318906922
• Country of Origin: USA

Technical Specifications

• MPN: 318906922
• Brand: ANVIL
• Item: Hex Bushing
• Finish: Black
• Material: Malleable iron
• Nominal pipe size (a): 1"
• Nominal pipe size (b): 1/8"
• Specific Fitting Shape: Hex Bushing
• Fitting Schedule/Class: Class 150
• Fitting Connection Type: MNPT x FNPT (Male NPT x Female NPT)
• Standards: UL / FM Approved ASME B16.39; ASTM A-197; ASTM A-153; ASME B1.20.1; ASME B16.39
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Temp. Range: -20 Degrees to 350 Degrees F
• Max. Pressure: 300 psi@150 Degrees F
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Includes Pre-Applied Thread Sealant: No
• For Use with Pipe Schedule: 40
• Body Material: Malleable Iron
• Class: Class 150
• Connection Type: MNPT x FNPT
• Maximum Pressure: 300 psi@150°F
• Mfr. Part Number: 318906922
• Package Quantity: 1
• Pipe Size: 1 in. x 1/8 in.
• Temperature Range (Deg. F): -20 to 350 deg. F
• Fitting Side A Gender: Male
• Fitting Side A Nominal Pipe Size: 1 in
• Fitting Side A Type: NPT
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 1/8 in
• Fitting Side B Type: NPT
• For Pipe Schedule: 40
• Gender: Female, Male
• Threading: NPT
• Pressure Level: Medium Pressure (300-999 psi)
