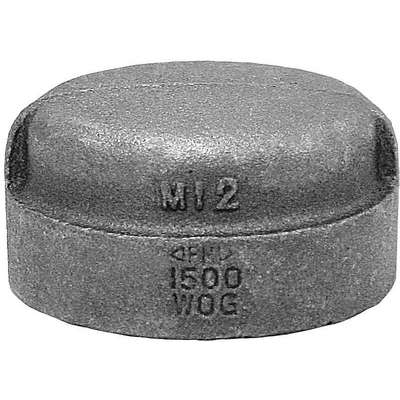

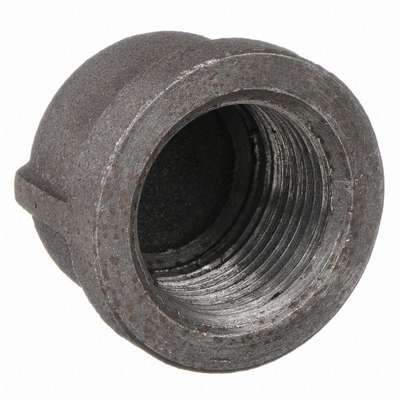

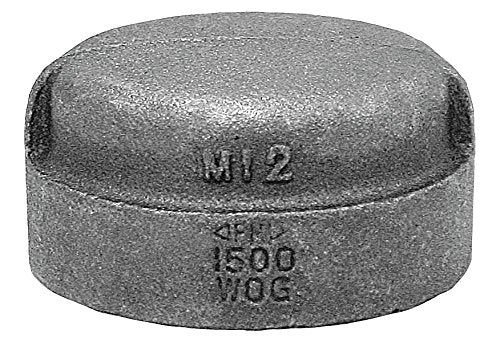

Anvil 318901006 Fig 1124 Standard Pipe Cap, 4 in, FNPT, 150 lb

Product Description

The ANVIL 318901006 FIG 1124 Standard Pipe Cap is a 4 inch, FNPT connected cap with a 150 lb pressure rating. Constructed from malleable iron, this standard pipe cap is suitable for low-pressure plumbing applications including air, water, natural gas, and steam. It conforms to UL, FM Approved, and ASME B16.3 standards.

• 4 inch size
• FNPT connection
• 150 lb pressure rating
• Malleable Iron construction

Product Highlights

Standard pipe cap with FNPT connection and a 150 lb pressure rating. Constructed from malleable iron.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 318901006
• Country of Origin: United States

Technical Specifications

• Material: Malleable Iron
• Size: 4 in
• Connection: FNPT
• Pressure Rating: 150 lb
• Type: Standard Pipe Cap
• Fitting Schedule/Class: Class 150
• Standards: UL: FM Approved: ASME B16.3
• Max. Pressure: 300 psi@150 Degrees F
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Temp. Range: -20 Degrees to 350 Degrees F
• Basic Fitting Material: Metal
• Basic Fitting Shape: Cap
• Specific Fitting Shape: Cap
• Pipe Fitting Material: Malleable Iron
• Brand: ANVIL
• MPN: 318901006
• Threading: NPT
• Class: Class 150
• Pipe Size: 4 in.
