Product Description

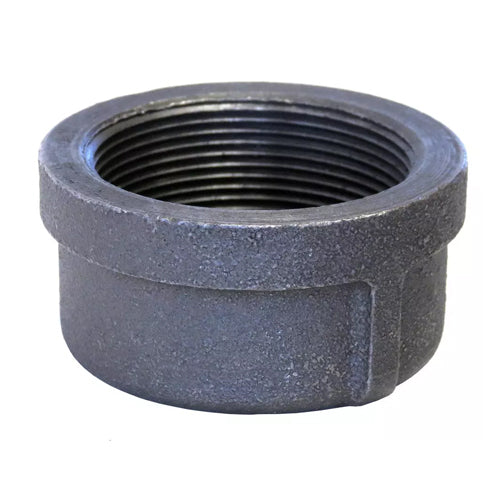

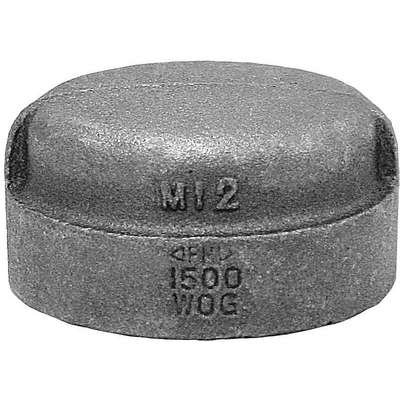

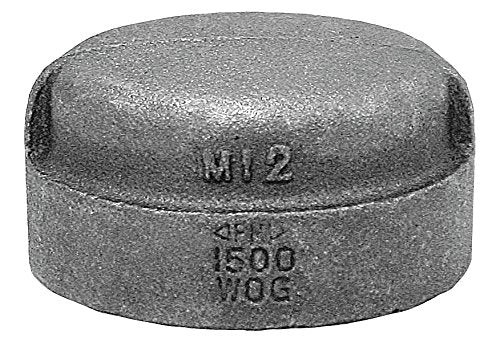

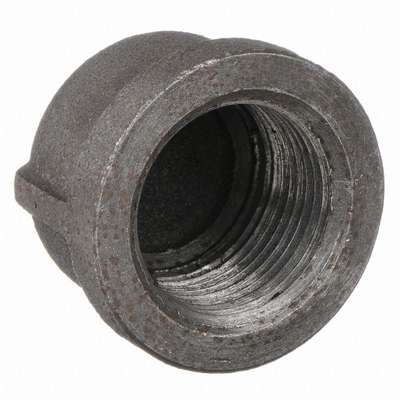

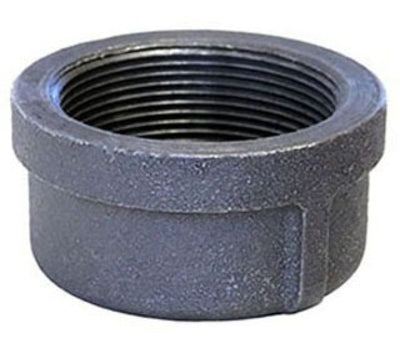

The ANVIL 318900842 is a 3-inch black malleable iron cap designed as a Class 150 fitting. This fitting conforms to ASME B16.3. It is suitable for use in air, natural gas, non-potable water, oil, and steam applications within commercial, residential, and fire protection systems. The cap is 100% gas tested at a minimum of 100 PSI (6.9 bar).
- Class 150 fitting
- Conforms to ASME B16.3
- Suitable for air, natural gas, non-potable water, oil, and steam applications
- 100% gas tested at a minimum of 100 PSI (6.9 bar)
Product Highlights
The Anvil 318900842 is a 3 inch black malleable iron cap designed for use in various applications. It conforms to ASME B16.3.
Product Information
Standard Information
-
Brand: ANVIL
-
Manufacturer Part Number: 318900842
-
Country of Origin: USA - Domestic
Technical Specifications
-
Pipe Fitting Material: Malleable Iron
-
Specific Fitting Shape: Cap
-
Fitting Schedule/Class: Class 150
-
Fitting Connection Type: Female NPT
-
Standards: UL Listed / FM Approved / ASME B16.3 / NSF 61 Certified / ASTM: ASTM A-197 / ASME B1 20.1
-
Saturated Steam Pressure: 150 psi @ 350 Degrees F
-
Operating Temperature Range: -20 Degrees to 350 Degrees F
-
Maximum Operating Pressure: 300 psi @ 150 Degrees F
-
Includes Pre-Applied Thread Sealant: No
-
Finish: Black
-
For Use with Pipe Schedule: 40
-
For Use with Flanges/Fittings: Class 150
-
Size: 3 in
-
Connection: FNPT
-
Pressure Rating: 150 lb
-
Material: Malleable Iron
-
Color: Black
-
Type: Standard Pipe Cap
-
Pipe Size - Pipe Fitting: 3 in
-
Max. Pressure: 300 psi@150 Degrees F
-
Temp. Range: -20 Degrees to 350 Degrees F
-
Category: Caps and Plugs
-
Brand: ANVIL
-
Body Material: Malleable Iron
-
Class: Class 150
-
Item: Cap
-
Maximum Pressure: 300 psi@150°F
-
Mfr. Part Number: 318900842
-
Package Quantity: 1
-
Pipe Size: 3 in.
-
Temperature Range (Deg. F): -20 to 350 deg. F
-
Max. Steam Pressure: 150 psi @ 350 Degrees F
-
Threading: NPT
-
Manufacturer: ANVIL
-
Model/Part#: 318900842
