Anvil 312822703 FIG 459 Pipe Union, 1 in, FNPT, 300 lb, Malleable Iron, Domestic

Product Description

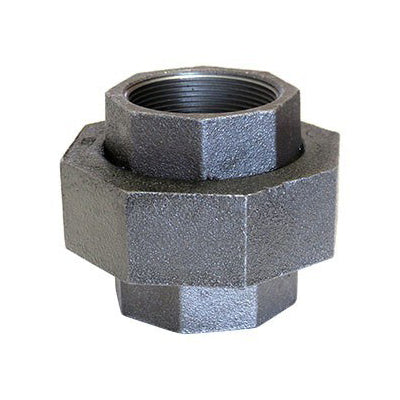

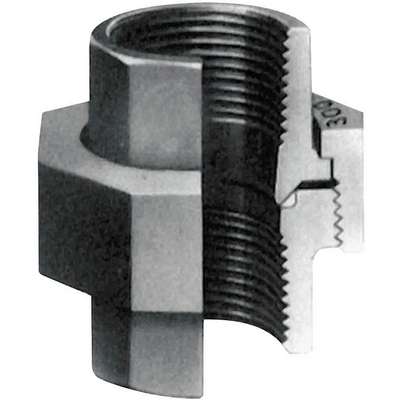

The Anvil 312822703 FIG 459 Pipe Union is a 1 in, FNPT connection fitting with a 300 lb pressure rating. Constructed from malleable iron, this union is suitable for air, water, oil, natural gas, and steam. It conforms to ASME B16.39 and is UL Listed. Designed with thicker walls, it can withstand higher pressures than class 150 fittings.

• 1 in size with FNPT connection
• Constructed from malleable iron
• Suitable for air, water, oil, natural gas, and steam

Product Highlights

The Anvil pipe union is a durable fitting made from malleable iron with a 1 inch FNPT connection.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 312822703
• Country of Origin: United States

Technical Specifications

• MPN: 312822703
• Material: Malleable Iron
• Size: 1 in
• Connection: FNPT
• Pressure Rating: 300 lb
• Fitting Schedule/Class: Class 300
• Standards: FM Approved, Meets ASME B16.39, UL Listed
• Max. Pressure: 600 psi@150 Degrees F
• Saturated Steam Pressure: 230 psi @ 550 Degrees F
• Hex Size: 1 3/16 in
• Temp. Range: -20 Degrees to 550 Degrees F
• Seat Material: Brass
• Category: Union
• Brand: Anvil
• Type: union
• System of Measurement: Inch
• Model: 312822703
• End Connection: Female Thread
• Fitting Size: 1"
• Fitting Type: Union
• Manufacturer Name: Anvil
• Option: Domestic
• Basic Fitting Material: Metal
• Basic Fitting Shape: Union
• Body Material: Malleable Iron
• Class: Class 300
• Maximum Pressure: 600 psi@150°F
• Package Quantity: 1
• Pipe Fitting Material: Malleable Iron
• Pipe Size: 1 in.
• Temperature Range (Deg. F): -20 to 550 deg. F
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 1 in
• Fitting Side A Type: NPT
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 1 in
• Fitting Side B Type: NPT
• For Pipe Schedule: 80
• Gender: Female
• Threading: NPT
• Compatible Brand: anvil
• Compatible Model: 312822703
