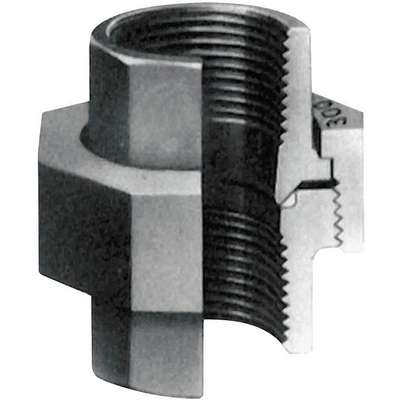

Anvil 312822661 FIG 459 Ground Joint Pipe Union 1/2 in FNPT

Product Description

The Anvil 312822661 FIG 459 is a ground joint pipe union with a 1/2 in. FNPT connection and a pressure rating of 300 lb. Constructed from malleable iron, this union is suitable for air, water, oil, natural gas, and steam. It meets ASME B16.39 standards.

• FIG 459
• Ground Joint Pipe Union
• 1/2 in FNPT Connection

Product Highlights

The Anvil ground joint pipe union features thicker walls for higher pressure applications and is suitable for various media.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 312822661

Technical Specifications

• MPN: 312822661
• Material: Malleable Iron
• Connection: FNPT
• Size: 1/2 in
• Pressure Rating: 300 lb
• Type: Ground Joint Pipe Union
• Category: Union
• Basic Fitting Material: Metal
• Basic Fitting Shape: Union
• Body Material: Malleable Iron
• Brand: ANVIL
• Class: Class 300
• Hex Size: 15/16 in.
• Item: Union
• Maximum Pressure: 600 psi@150°F
• Package Quantity: 1
• Pipe Fitting Material: Malleable Iron
• Pipe Size: 1/2 in.
• Seat Material: Brass
• Temperature Range (Deg. F): -20 to 550 deg. F
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 1/2 in
• Fitting Side A Type: NPT
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 1/2 in
• Fitting Side B Type: NPT
• For Pipe Schedule: 80
• Gender: Female
• Saturated Steam Pressure: 230 psi @ 550°F
• Standards: FM Approved, Meets ASME B16.39
• Threading: NPT
