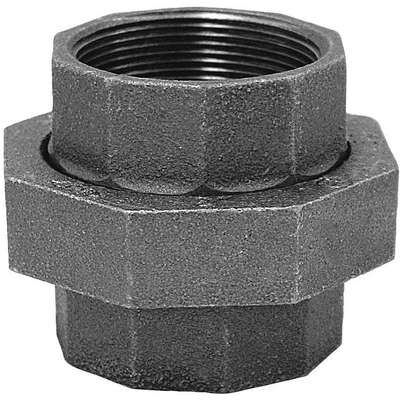

Anvil 312822224 fig 463 Ground Joint Pipe Union 3 in FNPT 150 lb

Product Description

The ANVIL 312822224 FIG 463 is a 3-inch ground joint pipe union with FNPT connection and a pressure rating of 150 lb. Constructed from malleable iron, this fitting is suitable for low-pressure plumbing applications, including air, water, natural gas, and steam. It is interchangeable with black cast-iron or steel.

• 3 in Size
• FNPT Connection
• 150 lb Pressure Rating
• Malleable Iron Construction

Product Highlights

The Anvil 312822224 union fitting is ideal for plumbing applications. It meets ASME B16.39 dimensions, and its threads conform to ANSI B1.20.1.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 312822224
• Country of Origin: United States

Technical Specifications

• MPN: 312822224
• Brand: ANVIL
• Material: Malleable Iron
• Size: 3 in
• Type: Ground Joint Pipe Union
• Connection: FNPT
• Pressure Rating: 150 lb
• Fitting Schedule/Class: Class 150
• Standards: UL: FM Approved: ASME B16.39
• Max. Pressure: 300 psi@150 Degrees F
• Saturated Steam Pressure: 150 psi
• Hex Size: 3 7/8 in
• Temp. Range: -20 Degrees to 350 Degrees F
• Seat Material: Brass
• Item: Union
• Package Quantity: 1
• Fitting Connection Type: FNPT
• Fitting Pipe Size: 3 in x 3 in
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 3 in
• Fitting Side A Type: NPT
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 3 in
• Fitting Side B Type: NPT
• For Pipe Schedule: 40
• Gender: Female
• Pipe Fitting Connection Type: Female NPT x Female NPT
• Pipe Fitting Gender: Female Female
• Pipe Size - Pipe Fitting: 3 in
