Anvil 312822000 Union 1/8 in. NPT Threaded

Brand: ANVIL
SKU: 312822000
Availability: In Stock

Ships same day if ordered by 12 pm
$42.19
$42.19
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

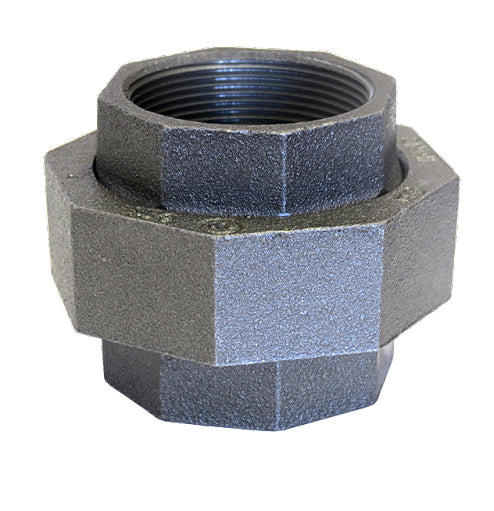

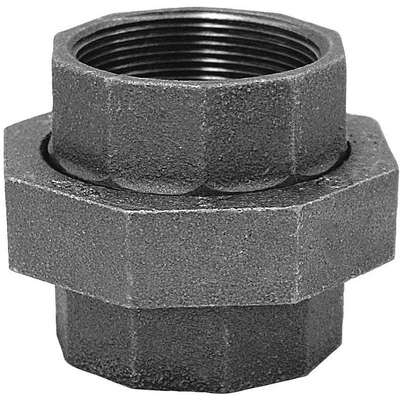

The ANVIL 312822000 is a 1/8 in. NPT threaded union fitting. Constructed from malleable iron with a black finish, this Class 150 union is suitable for low-pressure plumbing applications, including air, water, natural gas, and steam. It conforms to ASME B16.3 and B1 20.1 standards and is UL and FM approved.

  • End Connection Female Threaded x Female Threaded
  • Interchangeable with black cast-iron or steel
  • Suitable for low-pressure plumbing applications

Product Highlights

The ANVIL 312822000 union fitting is ideal for plumbing, industrial, mechanical, HVAC, fire protection, mining, oil, and gas applications.

Product Information

Standard Information

  • Brand: ANVIL
  • Manufacturer Part Number: 312822000
  • Country of Origin: USA
Technical Specifications
Material
Malleable Iron
Finish
Black
Category
Unions
Fitting Schedule/Class
Class 150
Fitting Connection Type
Female NPT x Female NPT
Standards
UL Listed / FM Approved / ASME B16.3 / ASME B1 20.1
Pipe Fitting Schedule/Pressure Class
Class 150
Saturated Steam Pressure
150 psi @ 350 Degrees F
Temp. Range
-20 Degrees to 350 Degrees F
Maximum Operating Pressure
300 psi @ 150 Degrees F
Includes Pre-Applied Thread Sealant
No
For Use with Pipe Schedule
40
For Use with Flanges/Fittings
Class 150
Body Material
Malleable Iron
Brand
ANVIL
Class
Class 150
Connection Type
FNPT
Item
Union
Maximum Pressure
300 psi@150°F
Mfr. Part Number
312822000
Package Quantity
1
Pipe Size
1/8 in.
Temperature Range (Deg. F)
-20 to 350 deg. F
Fitting Side A Gender
Female
Fitting Side A Nominal Pipe Size
1/8 in
Fitting Side A Type
NPT
Fitting Side B Gender
Female
Fitting Side B Nominal Pipe Size
1/8 in
Fitting Side B Type
NPT
For Pipe Schedule
40
Gender
Female
Threading
NPT
