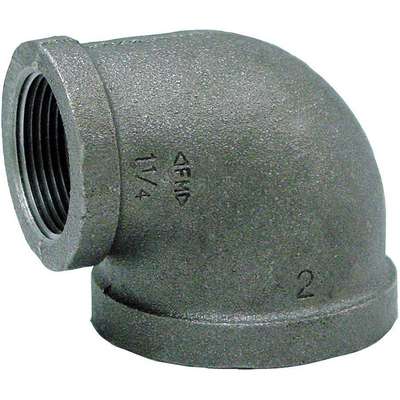

Anvil 311009807 Elbow 90 Malleable Iron 1 1/2 x 1 in

Product Description

The ANVIL 311009807 is a 90 degrees reducing elbow made of galvanized malleable iron. It is designed for pipe Schedule 40, featuring one and one-half inch female NPT and one inch female NPT connections. This product is suitable for low-pressure plumbing applications.

• Galvanized to resist rust and corrosion.
• Ideal for transferring air, water, natural gas, and steam.
• Maximum operating pressure of 300 psi at one hundred fifty degrees Fahrenheit.

Product Highlights

Product Information

Standard Information

• Manufacturer: ANVIL
• Model/Part#: 311009807

Technical Specifications

• Angle: 90 degrees
• Body Material: Galvanized malleable iron
• Class: 150
• Connection Type: FNPT
• Item: Reducing elbow
• Pipe Size: One and one-half inches x one inch
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• For Pipe Schedule: 40
• Standards: FM Approved, Meets ASME B16.3, ASTM A-197
• Temperature Range: Negative twenty degrees to three hundred fifty degrees Fahrenheit
• Threading: NPT
