Anvil 310544804 fig 1167 pipe reducer, 2x1-1/4 in, 300 lb

Product Description

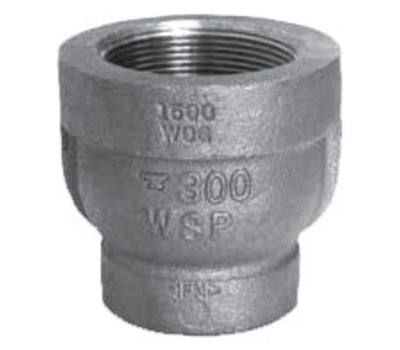

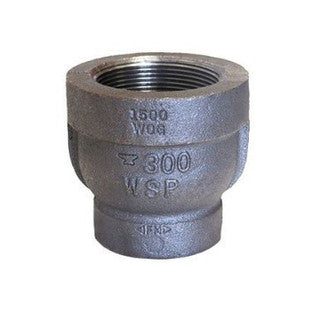

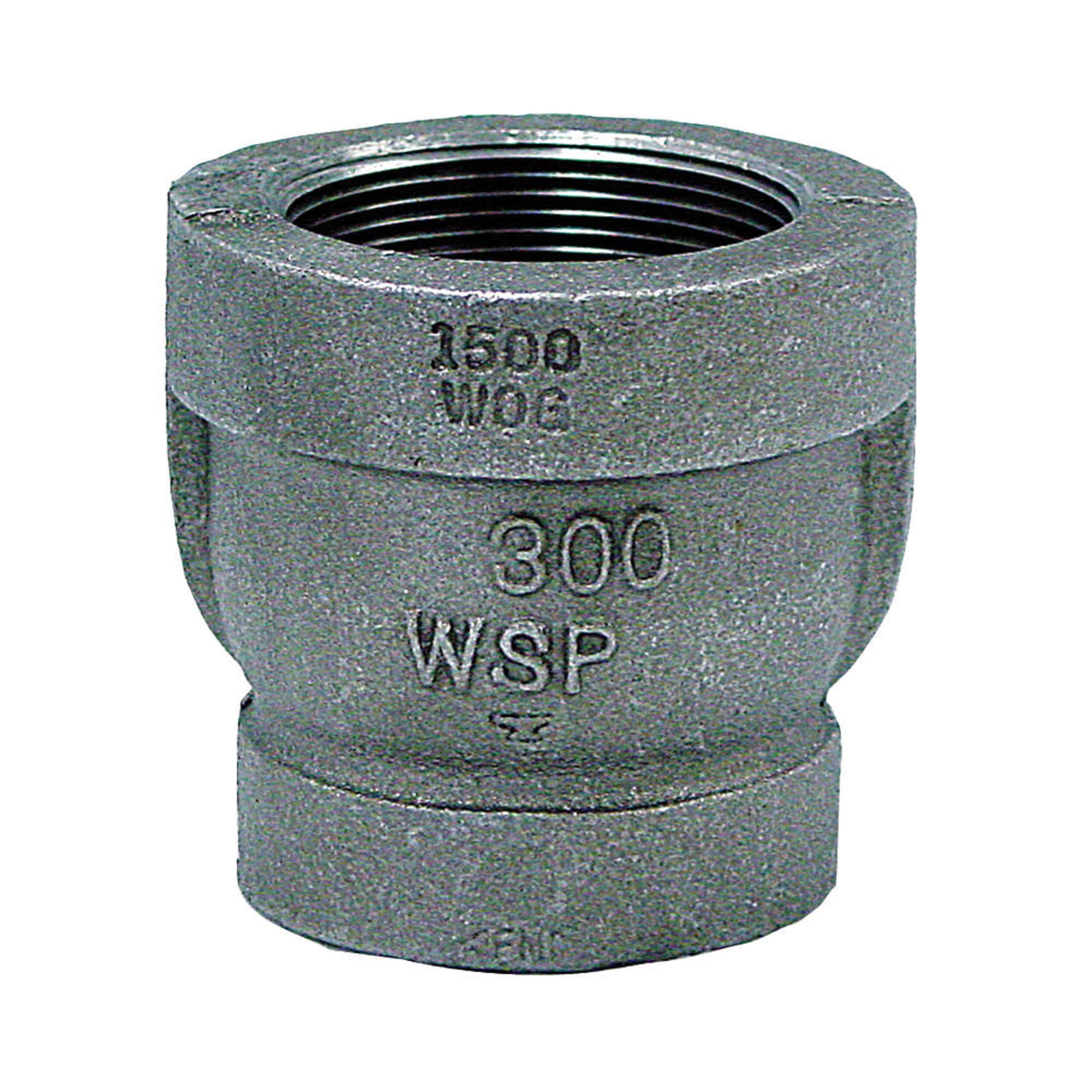

The Anvil 310544804 FIG 1167 is a pipe reducer with a 2x1-1/4 inch size and FNPT connection. Constructed from malleable iron, this fitting has a pressure rating of 300 lb. It conforms to ASME B16.3 and is suitable for various plumbing and piping applications.

• FIG 1167 pipe reducer
• Features a 2x1-1/4 inch size and FNPT connection
• Constructed from durable malleable iron with a 300 lb pressure rating

Product Highlights

Durable malleable iron pipe reducer with FNPT connection and 300 lb pressure rating.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310544804

Technical Specifications

• Material: Malleable Iron
• Connection: FNPT
• Size: 2x1-1/4 in
• Pressure Rating: 300 lb
• Type: Pipe Reducer
• Fitting Schedule/Class: Class 300
• Standards: UL Listed, FM Approved, AAR Approved, Meets ASME B16.3
• Max. Pressure: 1500 psi@150 Degrees F
• Saturated Steam Pressure: 300 psi @ 550 Degrees F
• Temp. Range: -20 Degrees to 550 Degrees F
• MPN: 310544804
• Brand: ANVIL
