Anvil 310543202 1 1/4 inches x 1 inches Black Malleable Iron Reducer

Product Description

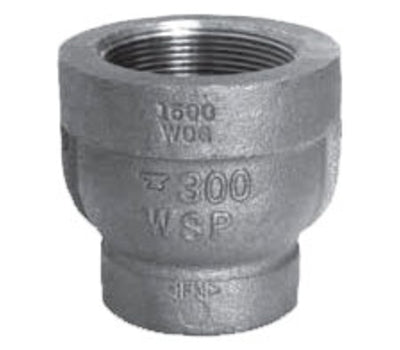

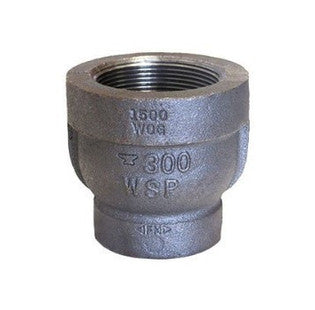

The Anvil 310543202 is a black malleable iron reducer fitting designed to connect pipes of different sizes, specifically 1 1/4" to 1". This Class 300 XH reducer conforms to ASME B16.3 standards. It has a maximum pressure of 1500 psi at 150 Degrees F and a saturated steam pressure of 300 psi at 550 Degrees F. The fitting operates in a temperature range of -20 Degrees to 550 Degrees F.

• Fitting type: Reducer
• Material: Malleable Iron
• Conforms to ASME B16.3

Product Highlights

The Anvil 310543202 reducer is made of black malleable iron and connects 1 1/4" to 1" pipes. It meets ASME B16.3 standards.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310543202
• Country of Origin: United States

Technical Specifications

• Fitting Size 1: 1 1/4"
• Fitting Size 2: 1"
• Material: Malleable Iron
• Fitting Class: Class 300 XH
• Finish: Black
• Fitting Connection Type: FNPT
• Standards: AAR Approved, FM Approved, Meets ASME B16.3, UL Listed
• Max. Pressure: 1500 psi@150 Degrees F
• Saturated Steam Pressure: 300 psi @ 550 Degrees F
• Temp. Range: -20 Degrees to 550 Degrees F
• MPN: 310543202
• Brand: ANVIL
