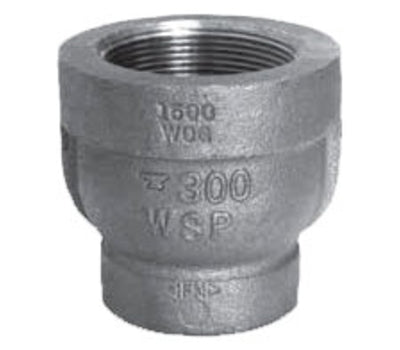

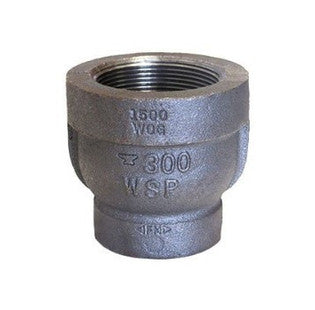

Anvil 310541800 3/4 inches x 1/2 inches Black Malleable Iron Reducer

Product Description

The ANVIL 310541800 is a black malleable iron reducer fitting. This Class 300 XH reducer is used to connect pipes of different sizes, specifically 3/4" and 1/2". It is manufactured and tested to meet strict quality standards. All ANVIL Class 300 Malleable Iron Fittings conform to ASME B16.3.

• Fitting type: Reducer
• Material: Malleable Iron
• Conforms to ASME B16.3

Product Highlights

This malleable iron reducer fitting connects pipes of different sizes and conforms to ASME B16.3.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310541800

Technical Specifications

• Fitting Size 1: 3/4"
• Fitting Size 2: 1/2"
• Material: Malleable Iron
• Fitting Class: Class 300 XH
• Standards: ASME B16.3
• MPN: 310541800
• Brand: ANVIL
• Size: 3/4x1/2 in
• Connection: FNPT
• Pressure Rating: 300 lb
• Fitting Schedule/Class: Class 300
• Pipe Size - Pipe Fitting: 3/4 in x 1/2 in
• Fitting Connection Type: FNPT
• Max. Pressure: 2000 psi@150 Degrees F
• Saturated Steam Pressure: 300 psi @ 550 Degrees F
• Temp. Range: -20 Degrees to 550 Degrees F
