Anvil 310091202 fig 1125 pipe reducer, 3x1-1/2 in, fnpt, 150 lb

Product Description

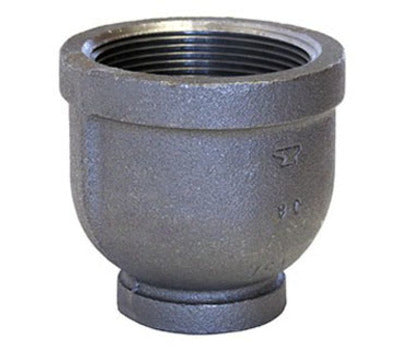

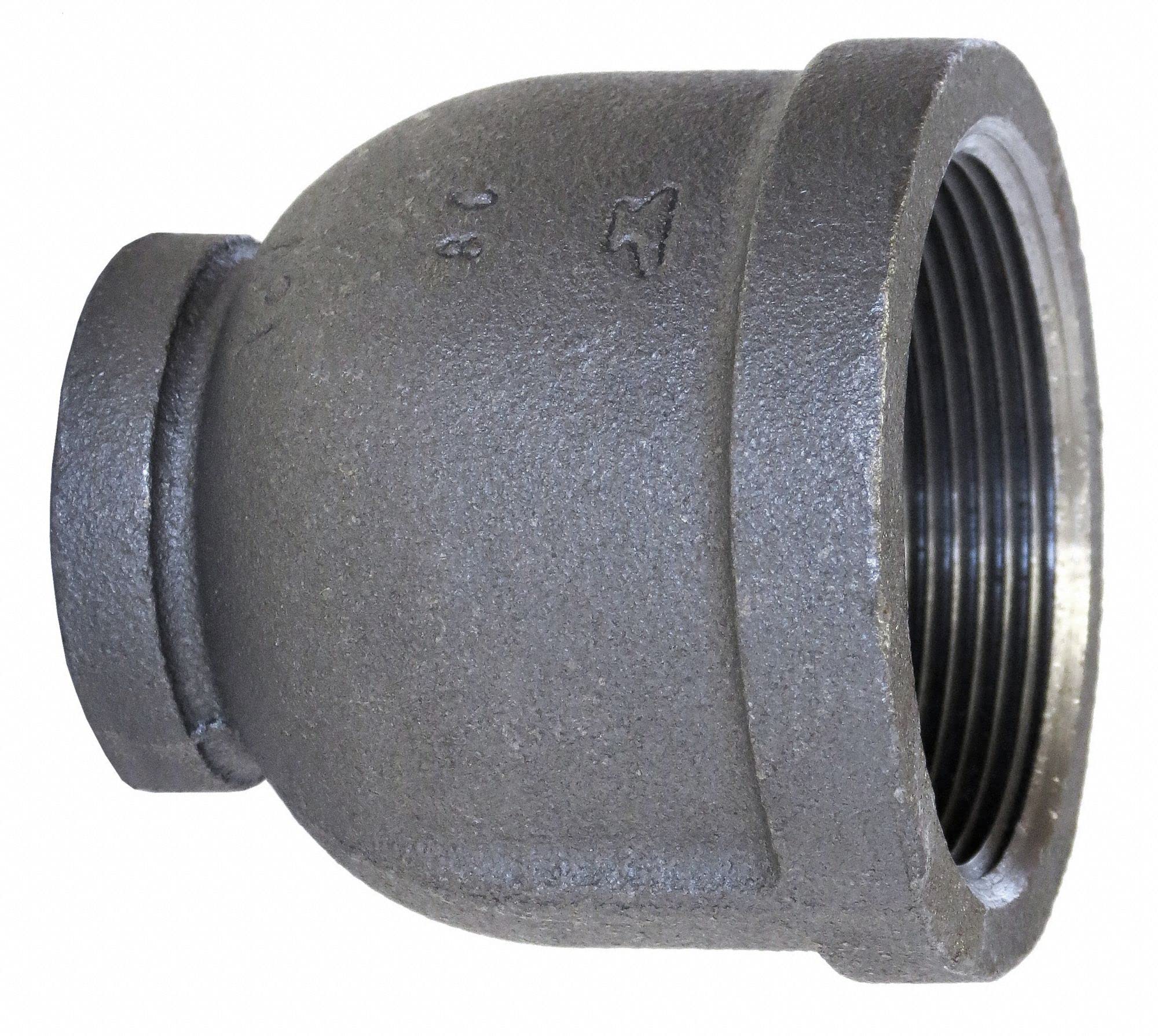

The Anvil 310091202 FIG 1125 is a pipe reducer with a size of 3x1-1/2 inches. Constructed from malleable iron with a FNPT connection, this fitting is rated to 150 lb. It conforms to ASME B16.3 standards and can be used in a variety of plumbing applications.

• Malleable Iron Construction
• FNPT Connection Type
• Pressure Rating: 150 lb

Product Highlights

This Anvil pipe reducer is made from durable malleable iron and features a black finish. Suitable for use in plumbing and pipe fitting applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310091202
• Country of Origin: United States

Technical Specifications

• Material: Malleable Iron
• Size: 3x1-1/2 in
• Connection: FNPT
• Pressure Rating: 150 lb
• Type: Pipe Reducer
• Fitting Schedule/Class: Class 150
• Basic Fitting Material: Metal
• Temp. Range: -20 Degrees to 350 Degrees F
• Specific Fitting Shape: Reducing Coupling
• Pipe Fitting Material: Malleable Iron
• Pipe Size (Fittings): 3" x 1-1/2"
• Standards: UL: FM Approved: ASME B16.3
• Max. Pressure: 300 psi@150 Degrees F
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
