Anvil 310090600 fig 1125 pipe reducer, 2-1/2x1 in, fnpt, 150 lb

Product Description

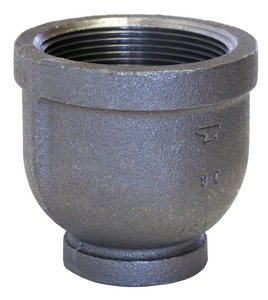

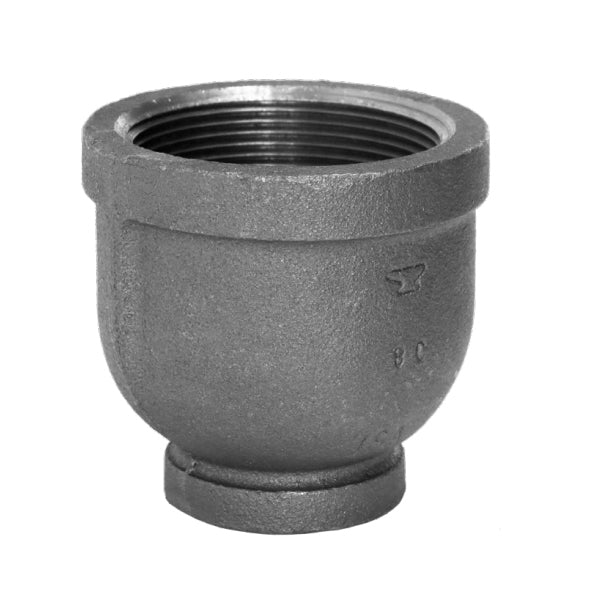

The ANVIL 310090600 FIG 1125 is a pipe reducer with a size of 2-1/2x1 inches. Constructed from malleable iron, this fitting features an FNPT connection and a pressure rating of 150 lb. Suitable for plumbing, HVAC, industrial, and fire protection applications.

• Made of Malleable Iron
• Features FNPT connection
• Complies with ASME B16.3 standard

Product Highlights

This pipe reducer is ideal for reducing pipe size in various applications. It is made to meet strict quality standards.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310090600
• Country of Origin: United States

Technical Specifications

• Material: Malleable Iron
• Size: 2-1/2x1 in
• Type: Pipe Reducer
• Connection: FNPT
• Pressure: 150 lb
• Fitting Schedule/Class: Class 150
• Standards: UL: FM Approved: ASME B16.3
• Max. Pressure: 300 psi@150 Degrees F
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Temp. Range: -20 Degrees to 350 Degrees F
• Pipe Fitting Material: Malleable Iron
• Fitting Connection Type: FNPT x FNPT (Female End x Female End)
• Finish: Black
• For Use with Pipe Schedule: 40
• Specific Fitting Shape: Reducer / Reducing Coupling
