Product Description

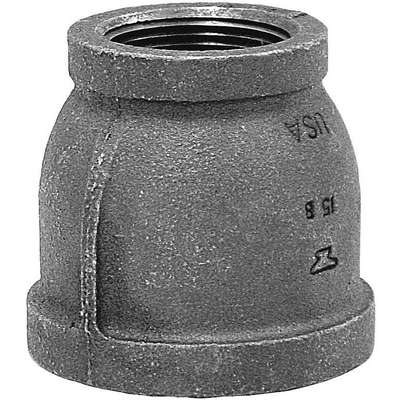

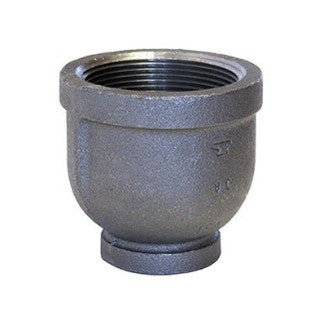

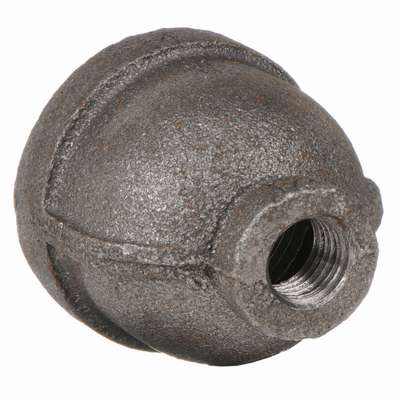

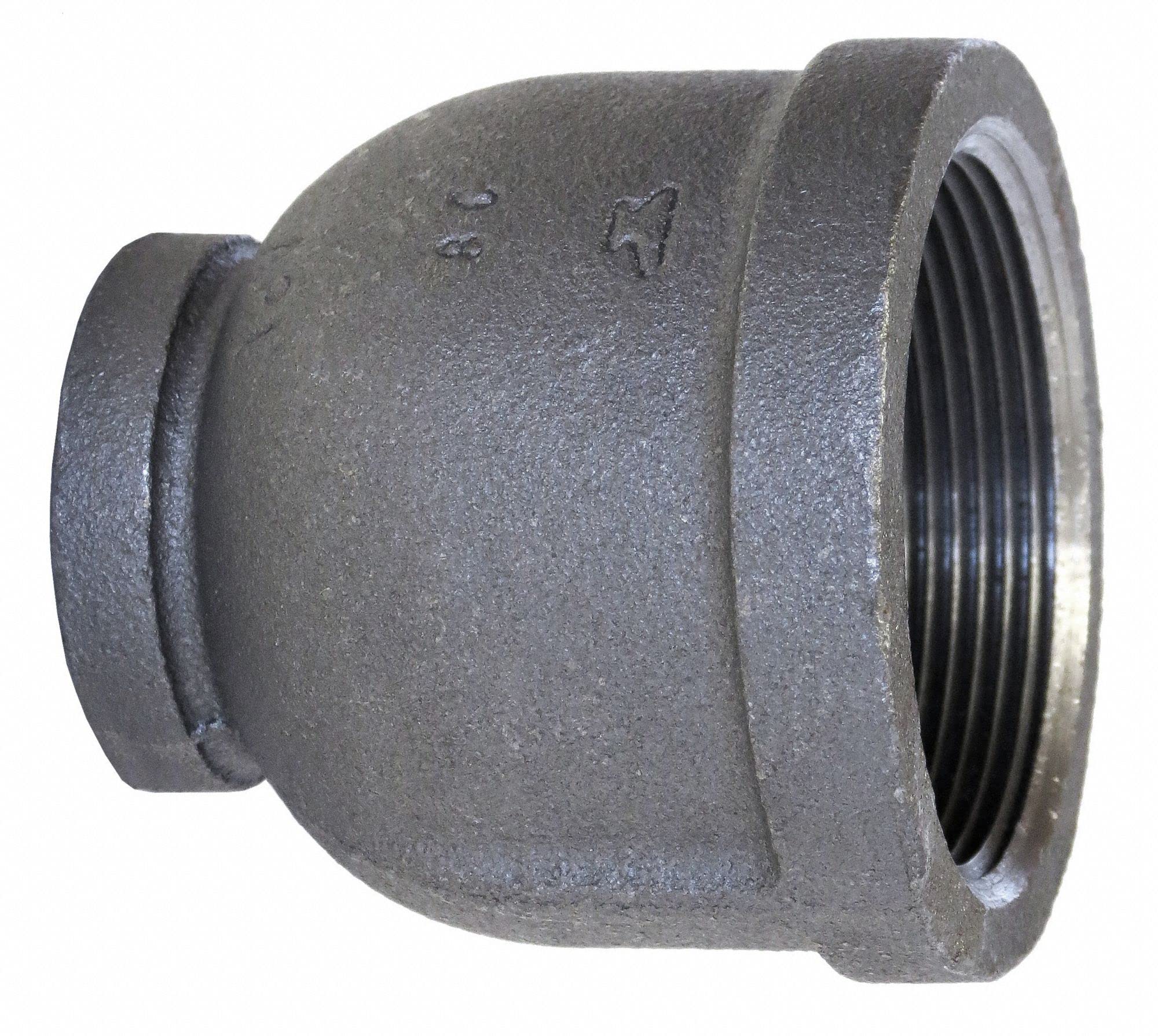

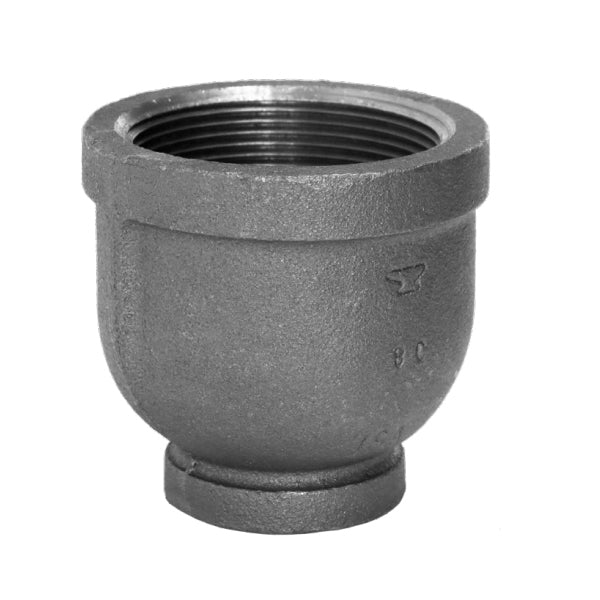

The Anvil 310090006 FIG 1125 is a pipe reducer with a size of 2-1/2x2 inches, featuring FNPT connections and a pressure rating of 150 lb. Constructed from malleable iron, this reducer is suitable for low-pressure plumbing applications, including air, water, natural gas, and steam. It conforms to ASME B16.3 standards.
- Features FIG 1125
- Constructed from malleable iron
- Suitable for air, water, natural gas, and steam
Product Highlights
The Anvil 310090006 pipe reducer is ideal for reducing pipe sizes in various plumbing applications.
Product Information
Standard Information
-
Brand: ANVIL
-
Manufacturer Part Number: 310090006
-
Country of Origin: USA
Technical Specifications
-
Material: Malleable Iron
-
Size: 2-1/2x2 in
-
Connection: FNPT
-
Pressure Rating: 150 lb
-
Type: Pipe Reducer
-
Fitting Schedule/Class: Class 150
-
Max. Pressure: 300 psi@150 Degrees F
-
Saturated Steam Pressure: 150 psi @ 350 Degrees F
-
Standards: UL: FM Approved: ASME B16.3
-
Temp. Range: -20 Degrees to 350 Degrees F
-
Pipe Fitting Material: Malleable Iron
-
Fitting Connection Type: FNPT x FNPT (Female End x Female End)
-
Maximum Operating Pressure: 300 psi @ 150 Degrees F
-
For Use with Pipe Schedule: 40
-
End Connection: NPT
-
Body Material: Malleable Iron
-
Pipe Size: 2-1/2 in. x 2 in.
-
Temperature Range (Deg. F): -20 to 350 deg. F
-
Fitting Side A Gender: Female
-
Fitting Side A Nominal Pipe Size: 2 1/2 in
-
Fitting Side A Type: NPT
-
Fitting Side B Gender: Female
-
Fitting Side B Nominal Pipe Size: 2 in
-
Fitting Side B Type: NPT
-
For Pipe Schedule: 40
-
Threading: NPT
