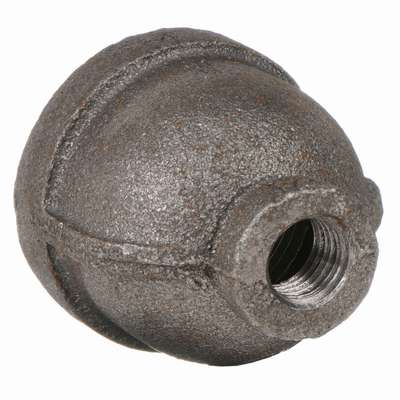

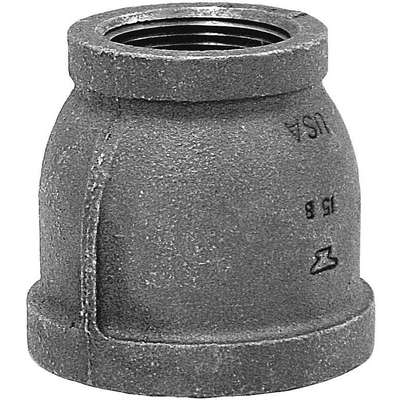

Anvil 310087200 Reducing Coupling 1 in. x 3/8 in.

Product Description

The ANVIL 310087200 reducing coupling is designed for low-pressure plumbing applications, including air, water, natural gas, and steam. This Class 150 malleable iron fitting conforms to ASME B16.3 and is suitable for use with schedule 40 pipe. It is manufactured and tested to meet strict quality standards. Elbows and tees 3/8" and larger are 100% gas tested at a minimum of 100 PSI.

• Broadest line of malleable iron fitting sizes
• Manufactured and tested to meet strict quality standards
• Conforms to ASME B16.3 and unions conform to ASME B16.39

Product Highlights

Suitable for air, water, natural gas, and steam. Meets ASME B16.3 standards. Designed for low-pressure plumbing applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310087200
• Country of Origin: USA

Technical Specifications

• MPN: 310087200
• Brand: ANVIL
• Pipe Fitting Material: Malleable Iron
• Specific Fitting Shape: Reducer / Reducing Coupling
• Fitting Schedule/Class: Class 150
• Fitting Connection Type: FNPT x FNPT (Female End x Female End)
• Standards: UL / FM Approved / ASME B16.3 / ASTM A197 / ASME B1 20.1
• For use with schedule 40 pipe/nipples: 40
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Temp. Range: -20 Degrees to 350 Degrees F
• Max. Pressure: 300 psi@150 Degrees F
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Includes Pre-Applied Thread Sealant: No
• Finish: Black
• For Use with Pipe Schedule: 40
• Size (inches): .375 (3/8")
• Material Type: Black Malleable Iron
• Product Type: Reducing Coupling
• Pressure Rating (psi): 150
• End Connection: NPT
• Weight (lbs): 0.35
• Additional: Domestic - Made in USA
• Basic Fitting Material: Metal
• Basic Fitting Shape: Coupling
• Body Material: Malleable Iron
• Class: Class 150
• Connection Type: FNPT
• Item: Reducer Coupling
• Pipe Size: 1 in. x 3/8 in.
• Temperature Range (Deg. F): -20 to 350 deg. F
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 1 in
• Fitting Side A Type: NPT
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 3/8 in
• Fitting Side B Type: NPT
• Gender: Female
• Threading: NPT
