Anvil 310085600 fig 1125 auxiliary air regulator pipe reducer 1/2x1/4 in

Product Description

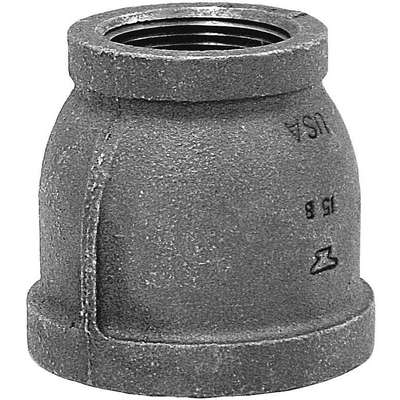

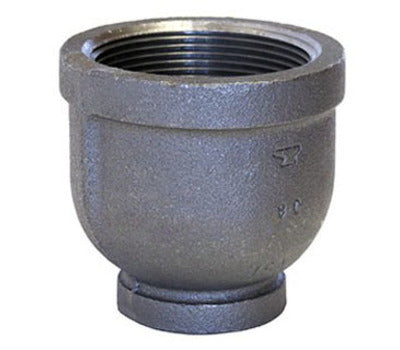

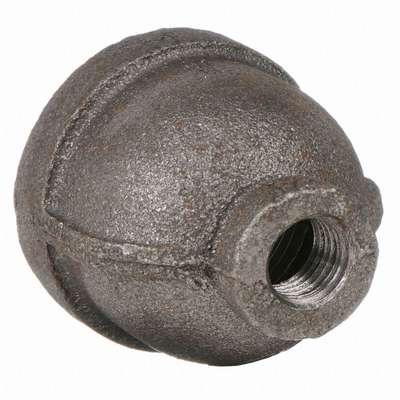

The Anvil 310085600 FIG 1125 is an auxiliary air regulator pipe reducer with a 1/2x1/4 inch size and FNPT connection. Constructed from malleable iron, it is designed for low-pressure plumbing applications, including air, water, natural gas, and steam. It conforms to ASME B16.3 standards.

• Size: 1/2x1/4 inch
• Connection: FNPT
• Material: Malleable Iron

Product Highlights

This Anvil reducer coupling is suitable for various low-pressure plumbing applications. It is made from malleable iron and conforms to ASME standards.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310085600
• Country of Origin: United States

Technical Specifications

• Material: Malleable Iron
• Size: 1/2x1/4 in
• Type: Auxiliary Air Regulator Pipe Reducer
• Connection Type: FNPT
• Pressure: 150 lb
• Class: Class 150
• For Pipe Schedule: 40
• Inlet Size: 1/2 in
• Inlet Gender: Female
• Inlet Connection Type: NPT
• Outlet Size: 1/4 in
• Outlet Gender: Female
• Outlet Connection Type: NPT
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Body Material: Malleable Iron
• Brand: ANVIL
• Item: Reducer Coupling
• Mfr. Part Number: 310085600
• Package Quantity: 1
• Pipe Size: 1/2 in. x 1/4 in.
• Temperature Range (Deg. F): -20 to 350 deg. F
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 1/2 in
• Fitting Side A Type: NPT
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 1/4 in
• Fitting Side B Type: NPT
• Threading: NPT
• Saturated Steam Pressure: 150 psi @ 350°F
• Standards: UL: FM Approved: ASME B16.3
