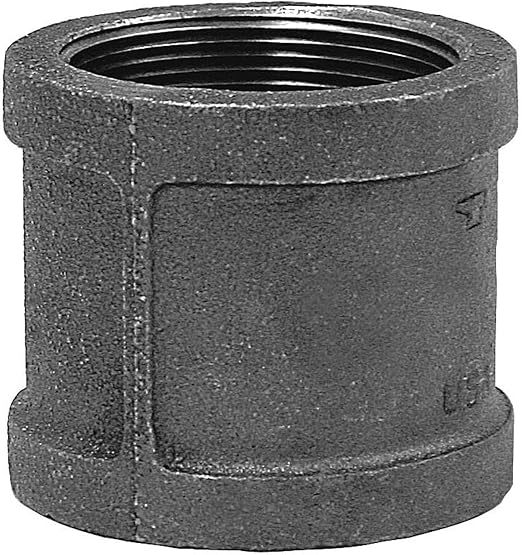

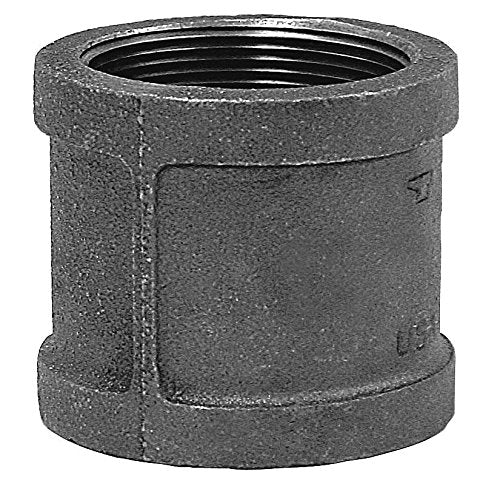

Anvil 310080007 fig 1121 right hand pipe coupling, 3/8 in, FNPT, 150 lb

Product Description

The Anvil 310080007 FIG 1121 is a right hand pipe coupling with a 3/8 inch size and FNPT connection. Constructed from malleable iron, this coupling is designed for 150 lb pressure rating. It conforms to UL, FM Approved, and ASME B16.3 standards and suitable for low-pressure plumbing applications including air, water, natural gas, and steam.

• 3/8 inch size
• FNPT connection type
• Malleable iron construction

Product Highlights

Right hand pipe coupling with FNPT connection and a 150 lb pressure rating. Constructed from malleable iron.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310080007
• Country of Origin: United States

Technical Specifications

• Material: Malleable Iron
• Size: 3/8 in
• Connection: FNPT
• Pressure Rating: 150 lb
• Type: Right Hand Pipe Coupling
• Fitting Schedule/Class: Class 150
• Standards: UL: FM Approved: ASME B16.3
• Max. Pressure: 300 psi@150 Degrees F
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Temp. Range: -20 Degrees to 350 Degrees F
• Basic Fitting Material: Metal
• Basic Fitting Shape: Coupling
• Specific Fitting Shape: Coupling
• Pipe Fitting Material: Malleable Iron
• Body Material: Malleable Iron
• Class: Class 150
• Item: Coupling
• Maximum Pressure: 300 psi@150°F
• Mfr. Part Number: 310080007
• Package Quantity: 1
• Pipe Size: 3/8 in.
• Temperature Range (Deg. F): -20 to 350 deg. F
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 3/8 in
• Fitting Side A Type: NPT
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 3/8 in
• Fitting Side B Type: NPT
• For Pipe Schedule: 40
• Gender: Female
• Threading: NPT
• Connector type: Coupling
• Thread type: NPT
• Number of pieces: 1
• Manufacturer: ANVIL
• UPC: 696333354950
• Pipe Size (Fittings): 3/8"
