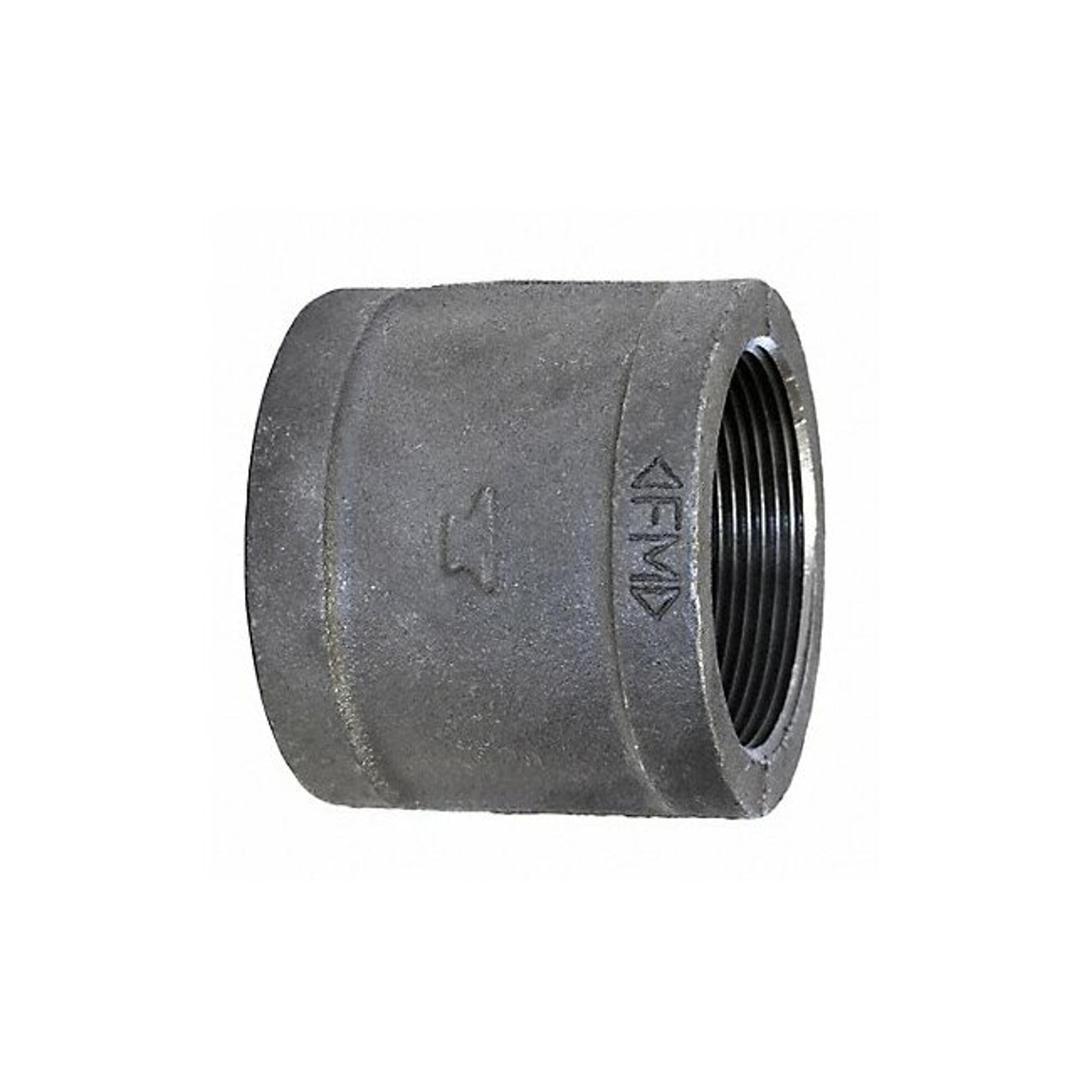

Anvil 310079801 fig 1121 Right Hand Pipe Coupling 1/4 in FNPT

Product Description

The ANVIL 310079801 FIG 1121 is a right-hand pipe coupling with a 1/4 inch FNPT connection and a 150 lb pressure rating. Constructed from malleable iron, this coupling is suitable for various piping applications. It conforms to ASME B16.3 standards and can withstand temperatures from -20 to 350 Degrees F.

• Right Hand Pipe Coupling
• 1/4 in FNPT Connection
• 150 lb Pressure Rating
• Malleable Iron Construction

Product Highlights

Right hand pipe coupling with 1/4 inch FNPT connection, malleable iron construction, and 150 lb pressure rating.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310079801
• Country of Origin: United States

Technical Specifications

• MPN: 310079801
• Brand: ANVIL
• Material: Malleable Iron
• Size: 1/4 in
• Type: Pipe Coupling
• Connection: FNPT
• Pressure Rating: 150 lb
• Hand: Right Hand
• Figure: 1121
• Fitting Schedule/Class: Class 150
• Max. Pressure: 300 psi@150 Degrees F
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Basic Fitting Material: Metal
• Basic Fitting Shape: Coupling
• Temp. Range: -20 Degrees to 350 Degrees F
• Specific Fitting Shape: Coupling
• Pipe Fitting Material: Malleable Iron
• Pipe Size (Fittings): 1/4\"
• Category: Couplings
