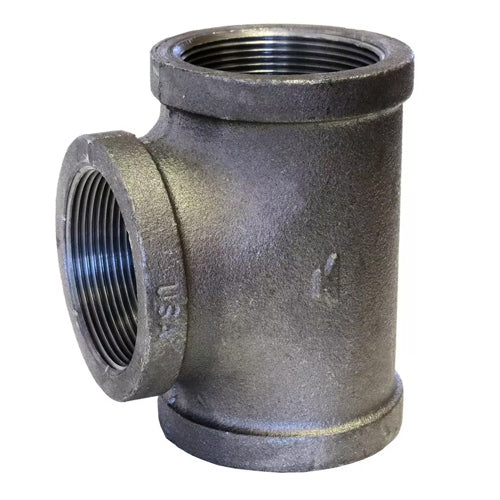

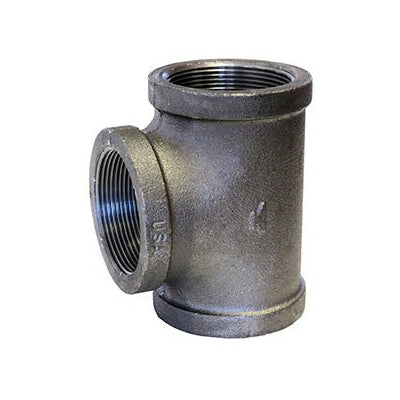

Anvil 310029608 3/8 in. NPT Black Malleable Iron Straight Tee

Product Description

The ANVIL 310029608 is a 3/8-inch NPT threaded straight tee fitting. Constructed from black malleable iron, this Class 150 fitting conforms to ASME B16.3 standards. It is suitable for use in air, natural gas, non-potable water, oil, and steam applications within commercial, residential, and fire protection systems. The fitting has female NPT connections on all ends and is 100% gas tested at a minimum of 100 PSI.

• Constructed from black malleable iron
• Features 3/8-inch female NPT connections
• Suitable for use with Schedule 40 pipe

Product Highlights

This straight tee fitting is ideal for connecting pipes in various applications, including air, natural gas, and steam. It features female NPT connections and is made from durable black malleable iron.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310029608
• Country of Origin: USA - Domestic

Technical Specifications

• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam, Commercial, Residential, Fire Protection
• Pipe Fitting Material: Malleable Iron
• Specific Fitting Shape: Tee - Straight (All NPT ends are female and the same size)
• Fitting Schedule/Class: Class 150
• Fitting Connection Type: Female NPT x Female NPT x Female NPT
• Standards: UL Listed / FM Approved / ASME B16.3 / NSF 61 Certified / ASTM: ASTM A-197 / ASME B1 20.1
• Pipe Fitting Schedule/Pressure Class: Class 150
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Temperature Range: -20 Degrees to 350 Degrees F
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Includes Pre-Applied Thread Sealant: No
• Finish: Black
• For Use with Pipe Schedule: 40
• Size: 3/8 in
• Connection: FNPT
• Pressure Rating: 150 lb
• Type: Straight Pipe Tee
• Material: Malleable Iron
• Brand: Anvil
• End Connection: Female Thread
• Fitting Size: 3/8"
• Fitting Type: Tee
• Manufacturer Name: Anvil
• Option: Domestic
