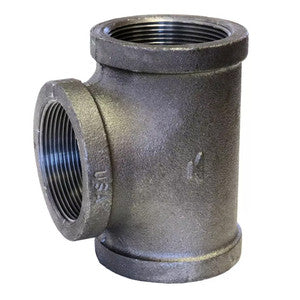

Anvil 310029400 FIG 1105 Straight Pipe Tee, 1/4 in, FNPT, 150 lb

Product Description

The ANVIL 310029400 FIG 1105 is a straight pipe tee with a 1/4 inch size and FNPT connection. Constructed from malleable iron, this tee fitting is rated for 150 lb. It conforms to ASME B16.3 standards and is suitable for air, natural gas, non-potable water, oil, and steam applications in commercial and residential settings, including fire protection systems.

• Constructed from malleable iron for durability.
• Features a 1/4 inch size with FNPT connection.
• Suitable for various applications including air, natural gas, and steam.

Product Highlights

Durable malleable iron construction, FNPT connection, and suitable for diverse applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310029400
• Country of Origin: USA

Technical Specifications

• Material: Malleable Iron
• Size: 1/4 in
• Type: Straight Pipe Tee
• Connection: FNPT
• Pressure Rating: 150 lb
• Fitting Schedule/Class: Class 150
• Standards: UL: FM Approved: ASME B16.3
• Max. Pressure: 300 psi@150 Degrees F
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Temp. Range: -20 Degrees to 350 Degrees F
• Pipe Fitting Material: Malleable Iron
• Specific Fitting Shape: Tee - Straight (All NPT ends are female and the same size)
• Fitting Connection Type: Female NPT x Female NPT x Female NPT (All NPT ends are the same size)
• Pipe Fitting Schedule/Pressure Class: Class 150
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Includes Pre-Applied Thread Sealant: No
• Finish: Black
• For Use with Pipe Schedule: 40
• For Use with Flanges/Fittings: Class 150
• NSF: NSF 61 CERTIFIED
• Manufacturer: ANVIL
• Model/Part#: 310029400
• Origin: United States
• HS Code: 7307199080
