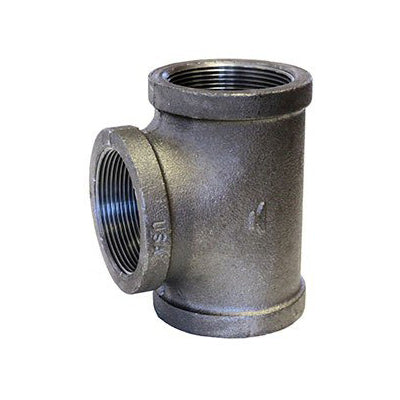

Anvil 310029202 Straight Tee, Black Malleable Iron, 1/8 in. NPT

Brand: ANVIL
SKU: 310029202
Availability: In Stock

Ships same day if ordered by 12 pm
$22.02
$22.02
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ANVIL 310029202 is a straight tee fitting designed for connecting three pipes of the same size in a straight line. Constructed from black malleable iron, this fitting conforms to ASME B16.3 standards. It is suitable for use in air, natural gas, non-potable water, oil, and steam applications within commercial, residential, and fire protection systems. The fitting features female NPT threaded connections on all ends.

  • Constructed from black malleable iron
  • Features female NPT connections on all ends
  • Suitable for use with Schedule 40 pipe

Product Highlights

This straight tee fitting is ideal for connecting schedule 40 pipes in various applications, including air, water, and gas lines.

Product Information

Standard Information

  • Brand: ANVIL
  • Manufacturer Part Number: 310029202
  • Country of Origin: USA - Domestic
Technical Specifications
MPN
310029202
Item
Straight Tee
Nominal Pipe Size
1/8"
Pipe Fitting Material
Malleable Iron
Specific Fitting Shape
Tee - Straight (All NPT ends are female and the same size)
Fitting Schedule/Class
Class 150
Fitting Connection Type
Female NPT x Female NPT x Female NPT
Standards
UL Listed / FM Approved / ASME B16.3 / NSF 61 Certified / ASTM: ASTM A-197 / ASME B1 20.1
Pipe Fitting Schedule/Pressure Class
Class 150
Saturated Steam Pressure
150 psi @ 350 Degrees F
Temperature Range
-20 Degrees to 350 Degrees F
Maximum Operating Pressure
300 psi @ 150 Degrees F
Includes Pre-Applied Thread Sealant
No
Finish
Black
For Use with Pipe Schedule
40
For Use with Flanges/Fittings
Class 150
NSF
NSF 61 CERTIFIED
Basic Fitting Material
Metal
Basic Fitting Shape
Tee
End Connection
Female Thread
Fitting Size
1/8 in.
Fitting Type
Tee
Manufacturer Name
Anvil
Material
Malleable Iron
Option
Domestic
Body Material
Malleable Iron
Class
Class 150
Connection Type
FNPT
Maximum Pressure
300 psi@150°F
Package Quantity
1
Pipe Size
1/8 in.
Fitting Side A Gender
Female
Fitting Side A Nominal Pipe Size
1/8 in
Fitting Side A Type
NPT
Fitting Side B Gender
Female
Fitting Side B Nominal Pipe Size
1/8 in
Fitting Side B Type
NPT
Fitting Side C Gender
Female
Fitting Side C Nominal Pipe Size
1/8 in
Fitting Side C Type
NPT
For Pipe Schedule
40
Gender
Female
Threading
NPT
