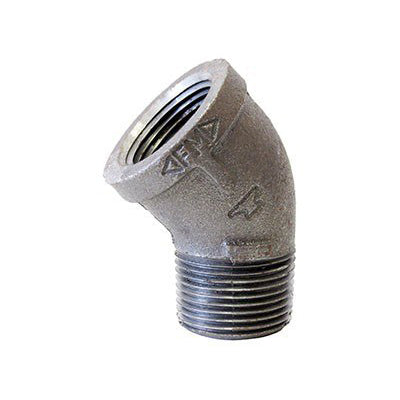

Anvil 310028204 fig 1104 street 45 deg elbow, 2 in, FNPTxMNPT, 150 lb

Product Description

The Anvil 310028204 FIG 1104 is a street 45-degree elbow with a 2-inch size and FNPTxMNPT connection. Constructed from malleable iron, it is designed for a pressure rating of 150 lb. It conforms to ASME B16.3 standards and is gas tested at a minimum of 100 PSI.

• Features a street 45 deg elbow design.
• Has a 2 in size with FNPTxMNPT connection.
• Constructed from malleable iron with a 150 lb pressure rating.

Product Highlights

This Anvil street elbow is suitable for various piping applications, offering a durable and reliable connection with its malleable iron construction.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310028204

Technical Specifications

• Material: Malleable Iron
• Size: 2 in
• Type: Street 45 deg Elbow
• Connection: FNPTxMNPT
• Pressure Rating: 150 lb
• Fitting Schedule/Class: Class 150
• Standards: UL: FM Approved: ASME B16.3
• Max. Pressure: 300 psi@150 Degrees F
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Temp. Range: -20 Degrees to 350 Degrees F
• Pipe Fitting Material: Malleable Iron
• Category: Elbows
• End Connection: Male Thread X Female Thread
• Fitting Size: 2"
• Fitting Type: 45 Elbow
• Manufacturer Name: Anvil
• Option: Domestic
• Item Height: 3.30
• Item Width: 3.50
• Item Length: 4.70
