Anvil 310022801 45 degree elbow 1/8 inches FNPT

Product Description

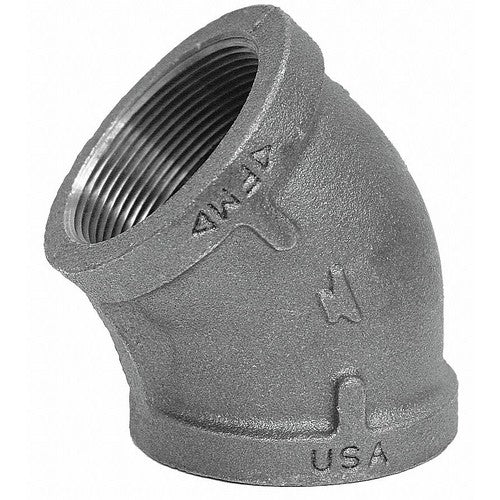

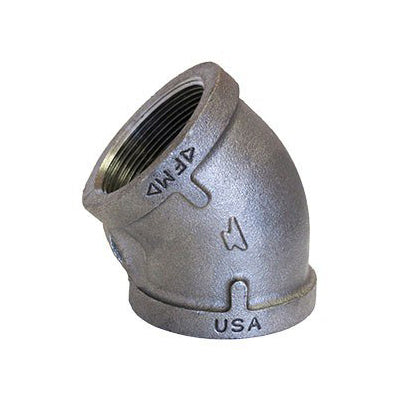

The ANVIL 310022801 is a 45-degree elbow fitting made from malleable iron with a 1/8" female NPT connection. Suitable for low-pressure plumbing applications, including air, water, natural gas, and steam. It conforms to ASME B16.3 standards and is UL and FM approved. This fitting is manufactured and tested to meet strict quality standards.

• Constructed from durable malleable iron
• Features a 1/8" female NPT connection
• Suitable for air, water, natural gas, and steam applications

Product Highlights

This 45-degree elbow fitting is ideal for low-pressure plumbing systems, providing a reliable connection with its durable construction and adherence to industry standards.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310022801
• Country of Origin: United States

Technical Specifications

• MPN: 310022801
• Brand: ANVIL
• Fitting Schedule/Class: Class 150
• Fitting Connection Type: FNPT x FNPT (Female End x Female End)
• Standards: UL: FM Approved: ASME B16.3
• Max. Pressure: 300 psi@150 Degrees F
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Basic Fitting Material: Metal
• Basic Fitting Shape: Elbow
• Temp. Range: -20 Degrees to 350 Degrees F
• Specific Fitting Shape: 45 Degrees Elbow
• Pipe Fitting Material: Malleable Iron
• Pipe Size (Fittings): 1/8"
• Fitting Type: Elbow
• Material: Malleable Iron
• Size: 1/8 inch
• Thread Type: Threaded
• Pressure Rating: 150#
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
• Pipe Fitting Schedule/Class: Class 150
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Includes Pre-Applied Thread Sealant: No
• Finish: Black
• For Use with Pipe Schedule: 40
• Size (inches): .125 (1/8")
• Material Type: Black Malleable Iron
• Product Type: 45° Elbow
• Category Type: Pipe Fittings
• Pressure Rating (psi): 150
• End Connection: NPT
• Angle: 45 deg.
• Body Material: Malleable Iron
• Class: 150 lb.
• Connection Type: FNPT
• Package Quantity: 1
• Pipe Size: 1/8 in.
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 1/8 in
• Fitting Side A Type: NPT
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 1/8 in
• Fitting Side B Type: NPT
• For Pipe Schedule: 40
• Gender: Female
• Threading: NPT
• Fitting Size: 1/8"
• Manufacturer Name: Anvil
• Option: Domestic
