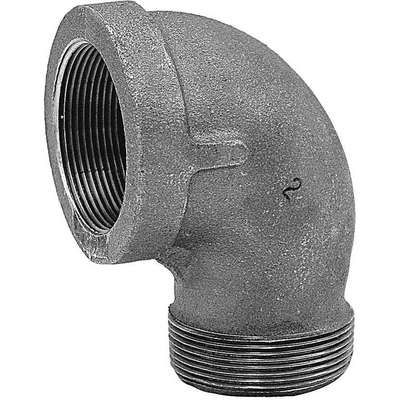

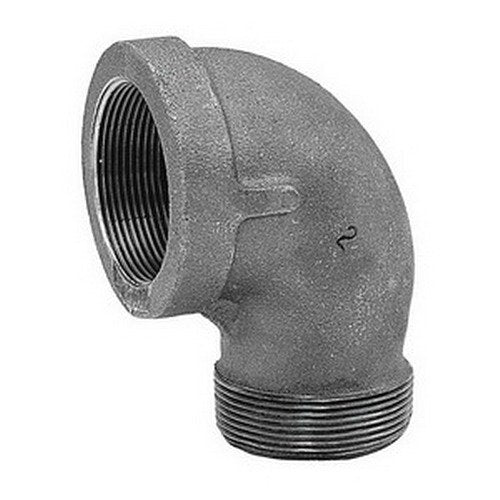

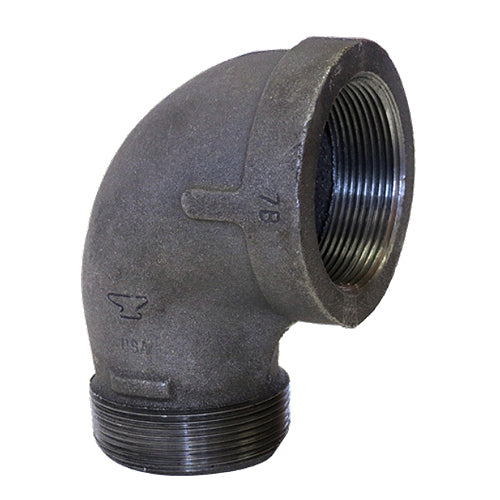

Anvil 310017009 fig 1103 Straight Street 90 deg Elbow 1-1/2 in FNPTxMNPT

Product Description

The Anvil 310017009 FIG 1103 is a straight street 90-degree elbow with a 1-1/2 inch size and FNPTxMNPT connection. Constructed from malleable iron, this fitting is suitable for low-pressure plumbing applications, including air, water, natural gas, and steam. It conforms to ASME B16.3 standards and is 100% gas tested.

• Features a Straight Street 90 deg Elbow design.
• Has a 1-1/2 inch size and FNPTxMNPT connection.
• Constructed from durable malleable iron.

Product Highlights

Malleable iron 90 degree street elbow with 1-1/2 inch FNPTxMNPT connection, suitable for various plumbing applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310017009
• Country of Origin: United States

Technical Specifications

• Material: Malleable Iron
• Size: 1-1/2 in
• Type: Straight Street 90 deg Elbow
• Connection Type: FNPT x MNPT
• Pressure Rating: 150 lb
• Class: 150
• Max. Pressure: 300 psi@150 Degrees F
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Standards: UL Listed, FM Approved, Meets ASME B16.3
• Temp. Range: -20 Degrees to 350 Degrees F
• Fitting Schedule/Class: Class 150
• Specific Fitting Shape: 90 Degree Elbow - Straight
• Pipe Fitting Schedule/Pressure Class: Class 150
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Includes Pre-Applied Thread Sealant: No
• Finish: Black
• For Use with Pipe Schedule: 40
• For Use with Flanges/Fittings: Class 150
• NSF: NSF 61 CERTIFIED
• Size (inches): 1.50 (1-1/2")
• Material Type: Black Malleable Iron
• Product Type: 90° Street Elbow
• Category Type: Pipe Fittings
• End Connection: NPT
• Specifications or Standards: NSF 61
• Angle: 90 deg.
• Basic Fitting Material: Metal
• Basic Fitting Shape: Elbow
• Pipe Fitting Material: Malleable Iron
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 1 1/2 in
• Fitting Side A Type: NPT
• Fitting Side B Gender: Male
• Fitting Side B Nominal Pipe Size: 1 1/2 in
• Fitting Side B Type: NPT
• For Pipe Schedule: 40
• Gender: Female, Male
• Threading: NPT
• Connector Type: Elbow
• Exterior Finish: Sandblast
• Thread Type: NPT
• Manufacturer: ANVIL
• Part Number: 0310017009
• Item model number: 310017009
• Shape: 90 degree elbow
• Item Package Quantity: 1
• Measurement System: inch
• Certification: ASME B16.3
• Brand: ANVIL
