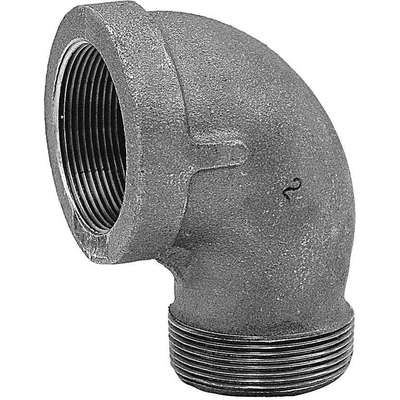

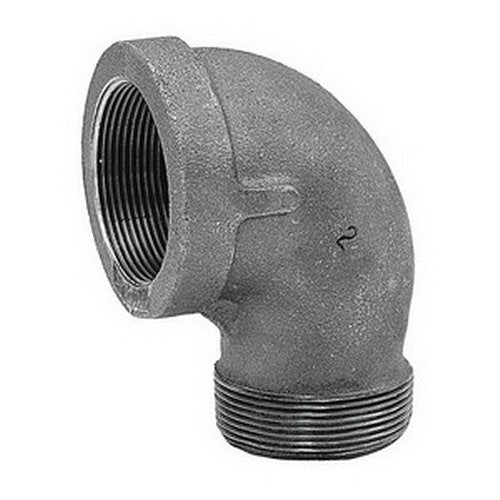

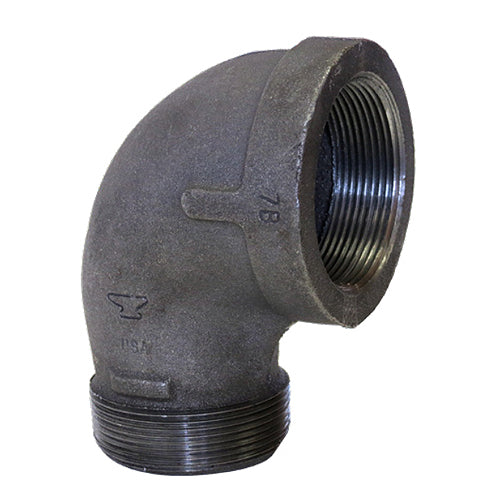

Anvil 310015805 fig 1103 straight 90 deg street elbow, 1/4 in, fnptxmnpt, 150 lb

Product Description

The ANVIL 310015805 FIG 1103 is a straight 90-degree street elbow with a 1/4 inch size and FNPTxMNPT connection. Constructed from malleable iron, it is designed for a pressure rating of 150 lb. Suitable for low-pressure plumbing applications including air, water, natural gas, and steam.

• Malleable iron construction
• FNPT x MNPT connection type
• Suitable for air, water, natural gas, and steam

Product Highlights

This durable street elbow is ideal for various plumbing applications requiring a reliable 90-degree connection.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310015805
• Country of Origin: United States

Technical Specifications

• Material: Malleable Iron
• Size: 1/4 in
• Type: Straight 90 deg Street Elbow
• Connection: FNPT x MNPT
• Pressure Rating: 150 lb
• Figure Number: 1103
• Fitting Schedule/Class: Class 150
• Standards: UL: FM Approved: ASME B16.3
• Max. Pressure: 300 psi@150 Degrees F
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Temp. Range: -20 Degrees to 350 Degrees F
• Pipe Fitting Material: Malleable Iron
• Specific Fitting Shape: 90 Degrees Street Elbow
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 1/4 in
• Fitting Side A Type: NPT
• Fitting Side B Gender: Male
• Fitting Side B Nominal Pipe Size: 1/4 in
• Fitting Side B Type: NPT
• For Pipe Schedule: 40
• Threading: NPT
• Angle: 90 deg.
• Body Material: Malleable Iron
• Class: 150 lb.
• Item: Street Elbow
• Mfr. Part Number: 310015805
• Package Quantity: 1
• Pipe Size: 1/4 in.
• Finish: Black
• For Use with Flanges/Fittings: Class 150
• Country Of Origin: USA - Domestic
• Material Type: Black Malleable Iron
• Product Type: 90° Street Elbow
• Category Type: Pipe Fittings
• End Connection: NPT
