Anvil 310015607 Street Elbow 1/8 inches FNPT x MNPT 90 Degree

Product Description

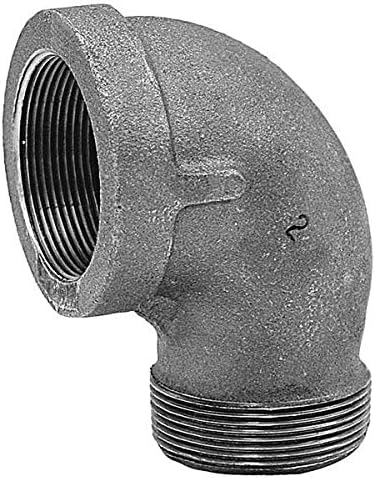

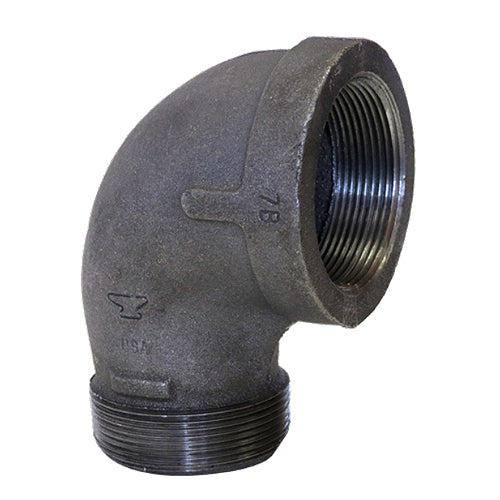

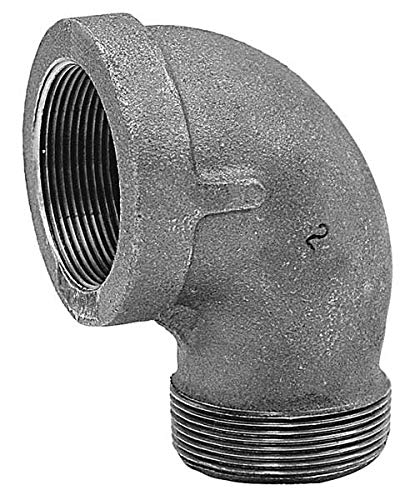

The ANVIL 310015607 is a 1/8" FNPT x MNPT 90 Degree Street Elbow. It is manufactured and tested to meet strict quality standards. This fitting conforms to ASME B16.3 and unions conform to ASME B16.39. Suitable for low-pressure plumbing applications including air, water, natural gas, and steam.

• Made of malleable iron
• Fitting Connection Type: FNPT x MNPT
• Compliant with UL, FM Approved, and ASME B16.3 standards

Product Highlights

This 90 degree street elbow is ideal for creating angled connections in piping systems. It is rated to a maximum pressure of 300 psi at 150 Degrees F.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 310015607
• Country of Origin: United States

Technical Specifications

• Fitting Schedule/Class: Class 150
• Pipe Size (Fittings): 1/8"
• Fitting Connection Type: FNPT x MNPT
• Standards: UL Listed / FM Approved / ASME B16.3 / NSF 61 Certified / ASTM: ASTM A-197 / ASME B1 20.1
• Max. Pressure: 300 psi@150 Degrees F
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Temp. Range: -20 Degrees to 350 Degrees F
• Pipe Fitting Material: Malleable Iron
• Specific Fitting Shape: 90 Degree Elbow - Straight
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Includes Pre-Applied Thread Sealant: No
• Finish: Black
• For Use with Pipe Schedule: 40
• For Use with Flanges/Fittings: Class 150
