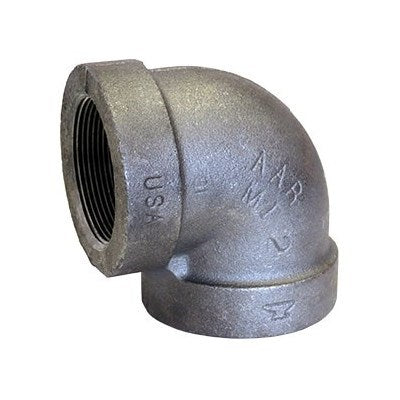

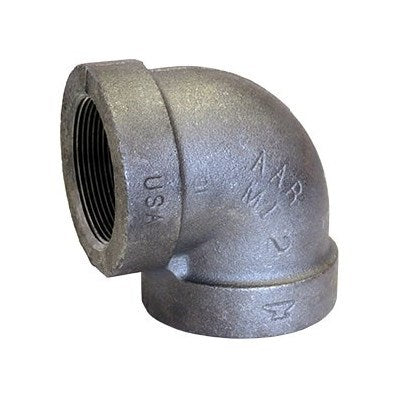

Anvil 300016003 Cast Iron 90 Elbow 3 X 2.5 in

Product Description

The ANVIL 300016003 is a standard reducing 90-degree cast iron elbow designed for drain, waste, and vent piping systems. It transitions from a 3-inch inlet to a 2.5-inch outlet at a 90-degree change of direction. Cast iron construction provides the durability and mass required for commercial and heavy residential drainage applications. This fitting is typically installed by licensed plumbers working on soil stacks, building drains, and underground or above-grade DWV runs where long-term service life is required.

This elbow is suited for use in soil and waste piping systems in both new construction and retrofit applications. The reducing configuration allows a plumber to step down from a 3-inch main line to a 2.5-inch branch or continuation without an additional bushing. It is appropriate for horizontal-to-vertical and vertical-to-horizontal transitions depending on system layout and code requirements.

Key Features

• 90-degree elbow geometry for right-angle directional changes in drain and waste piping
• Reducing pattern transitions from 3-inch inlet to 2.5-inch outlet
• Standard cast iron construction for strength and vibration damping in DWV systems
• Compatible with standard hub-and-spigot or mechanical joint assembly methods typical of cast iron pipe systems

Compatibility

Designed as an OEM-style replacement fitting for standard cast iron drain, waste, and vent piping systems using 3-inch and 2.5-inch nominal pipe sizes.

Installation Notes

Installation is performed by a licensed plumber. Shut off and drain the affected piping system before removing any existing fittings. Cast iron fittings may be joined using lead-and-oakum, no-hub couplings, or other methods as permitted by local plumbing code and the applicable edition of the IPC or local adopted code. Do not overtighten mechanical couplings beyond the torque specified by the coupling manufacturer.

Technical Specifications

• Material: Cast Iron
• Fitting Type: 90 Degree Elbow
• Pattern: Reducing
• Inlet Size: 3 inches
• Outlet Size: 2.5 inches

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 300016003
