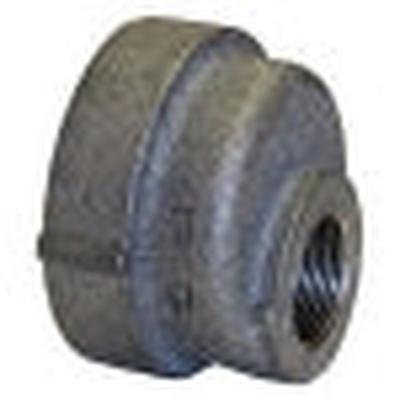

ANVIL 2XD.BER Eccentric Reducer 2 x 1/2 in Nominal 125 lb

Product Description

The ANVIL 2XD.BER is an eccentric reducer designed for use in various piping applications. This fitting has a nominal size of two inches by one-half inch. It features a FNPT end style and is constructed from cast iron with a black oxide finish. The reducer is rated for a pressure class of one hundred twenty-five pounds and can handle temperatures ranging from negative twenty to one hundred fifty degrees Fahrenheit.

• Nominal Size: 2 x 1/2 inches
• Material: Cast Iron
• Pressure Rating: 175 psi

Product Highlights

The eccentric design allows for proper alignment in piping connections. This reducer is suitable for a range of plumbing and HVAC applications.

Product Information

Standard Information

• Brand: ANVIL
• MPN: 2XD.BER

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Reducer
• Length: 1-15/16 inches
• Material: Cast Iron
• Pressure Class: 125 lb
• Temperature Rating: -20 to 150 deg F
