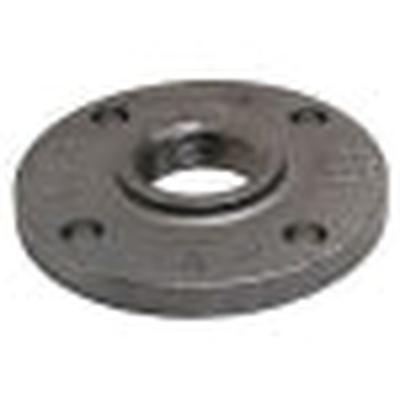

ANVIL 2DX7D.NRF Reducing Companion Flange 125 lb 2-1/2 in

Product Description

The ANVIL 2DX7D.NRF is a reducing companion flange designed for connecting pipes in various plumbing applications. This flange features a nominal size of two and a half inches and is made from cast iron with a galvanized finish.

• Thread connection for seamless installation
• Temperature range of negative twenty to four hundred fifty degrees Fahrenheit
• Pressure class rated at 125 lb with a maximum pressure rating of 200 psi

Product Highlights

This flange is suitable for both domestic and import applications, ensuring flexibility in use. The four bolt holes allow for stable and reliable connections.

Product Information

Standard Information

• Material: Cast Iron
• Finish: Galvanized

Technical Specifications

• Connection Type: Thread
• Nominal Size: 2-1/2 in
• Outside Diameter: 7-1/2 in
• Hub Diameter: 3-9/16 in
• Length Through Hub: 1-1/8 in
• Thickness: 3/4 in
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Number of Bolt Holes: 4
• Temperature Rating: -20 to 450 deg F
