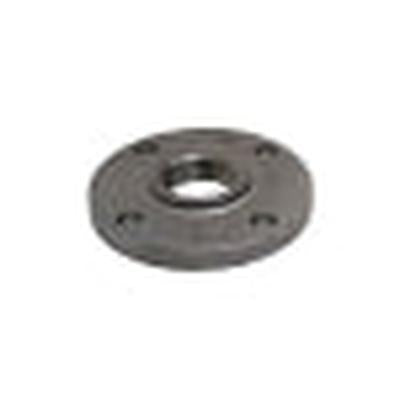

ANVIL 2DX7D.BRF Reducing Companion Flange 125 lb 2-1/2 in Nominal

Product Description

The ANVIL Reducing Companion Flange with MPN 2DX7D.BRF is designed for reliable connections in piping systems. This flange measures two and a half inches nominal size and features a thickness of three-quarters of an inch. It is built from durable cast iron and provides a strong FNPT connection. This flange is suitable for use in a variety of applications, from plumbing to HVAC.

• Nominal Size: 2-1/2 inches
• Max Pressure: 200 psi
• Temperature Range: -20 to 150 degrees Fahrenheit

Product Highlights

This product features robust construction for high-pressure systems and is compatible with standard piping layouts.

Product Information

Standard Information

• Material: Cast Iron
• Connection Type: FNPT

Technical Specifications

• Nominal Size: 2-1/2 inches
• Outside Diameter: 7-1/2 inches
• Hub Diameter: 3-9/16 inches
• Length Through Hub: 1-1/8 inches
• Bolt Circle Diameter: 7-1/2 inches
• Number of Bolt Holes: 4
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 150 degrees Fahrenheit
