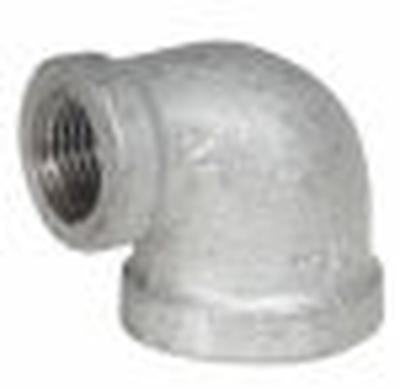

Anvil 2DX2.NML 2-1/2 x 2 in Galvanized 150# FNPT Reducing 90 Elbow Domestic

Product Description

The Anvil 2DX2.NML is a 2-1/2 inch by 2 inch galvanized reducing 90-degree elbow designed for pipe connections in various applications. This fitting is constructed from malleable iron and is suitable for domestic use. With a pressure rating of 300 psi, it ensures reliability and strength in your plumbing or HVAC systems.

• Nominal size of two and a half inches by two inches
• Rated for 150 pounds and suitable for SCH 40/STD installations
• Temperature range from minus twenty to 150 degrees Fahrenheit

Product Highlights

This elbow fitting is used to change the direction of piping systems while reducing the size of the pipe.

Product Information

Standard Information

• Domestic/Import: Domestic
• End Style: FNPT

Technical Specifications

• Finish: Galvanized
• Fitting/Connector Type: 90-degree Elbow
• Material: Malleable Iron
• Nominal Size: 2-1/2 x 2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1101R
• Temperature Rating: -20 to 150 degrees F
