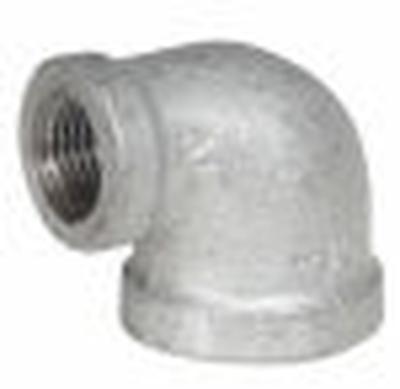

Anvil 2DX1D.NML Galvanized 150# FNPT Reducing 90 Elbow Domestic

Product Description

The Anvil 2DX1D.NML is a galvanized reducing elbow designed for pipe fittings. This product measures two and one-half by one and one-half inches in nominal size and is ideal for various plumbing and piping applications.

• Constructed from malleable iron with a galvanized finish
• Rated for 150 pounds with a pressure rating of 300 psi
• Functions effectively in temperatures ranging from minus twenty to one hundred fifty degrees Fahrenheit

Product Highlights

This reducing elbow is suitable for domestic applications and fits standard pipe sizes. It provides a reliable connection in plumbing systems.

Product Information

Standard Information

• Domestic/Import: Domestic
• End Style: FNPT

Technical Specifications

• Finish: Galvanized
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 2-1/2 x 1-1/2 In
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1101R
• Temperature Rating: -20 to 150 deg F
