ANVIL 2DX1.BMC 2-1/2 x 1 in Black Malleable 150 lb Reducer Domestic

Product Description

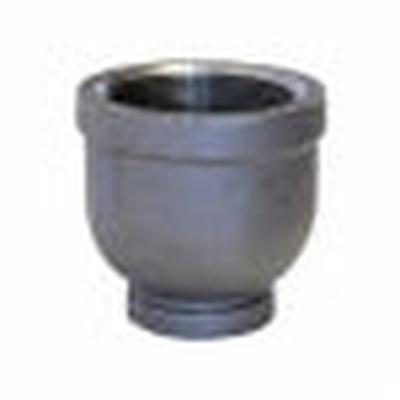

The ANVIL 2DX1.BMC is a 2-1/2 x 1 inch pipe reducer. This coupling is designed for reducing pipe sizes effectively in various plumbing applications. It features a FNPT end style and is constructed from durable malleable iron with a black oxide finish.

• Pipe size reduction from 2-1/2 inches to 1 inch.
• Pressure class rated for 150 lb with a pressure rating of 300 psi.
• Temperature rating of -20 to 150 degrees Fahrenheit.

Product Highlights

This reducer is ideal for residential and commercial plumbing systems, ensuring a reliable connection between different pipe sizes.

Product Information

Standard Information

• Domestic/Import: Domestic
• End Style: FNPT

Technical Specifications

• Finish: Black oxide
• Fitting/Connector Type: Reducing Coupling
• Length: 3-1/4 inches
• Material: Malleable Iron
• Nominal Size: 2-1/2 x 1 inches
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1125
• Temperature Rating: -20 to 150 degrees Fahrenheit
