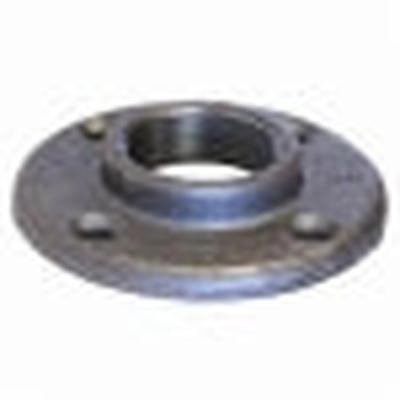

Anvil 2.BMFF Floor Flange 2 in Replacement MPN

Product Description

The Anvil 2.BMFF floor flange is a key component used in various piping systems. This flange is designed for a nominal size of two inches and is made from malleable iron, providing durability and strength. The flange features a galvanized finish that helps protect against corrosion, ensuring longevity in various environments.

• Nominal size of two inches
• Galvanized malleable iron construction
• Temperature rating of negative twenty to three hundred fifty degrees Fahrenheit

Product Highlights

This floor flange is ideal for securing pipe sections in plumbing and HVAC applications. Its four bolt holes provide reliable connection points, ensuring a tight fit within the piping system.

Product Information

Standard Information

• Nominal Size: 2 in
• Finish: Galvanized

Technical Specifications

• Bolt Circle Diameter: 4-1/4 in
• Bolt Hole Size: 5/16 in
• Material: Malleable Iron
• Outside Diameter: 5-1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Temperature Rating: -20 to 350 deg F
• Number of Bolt Holes: 4
