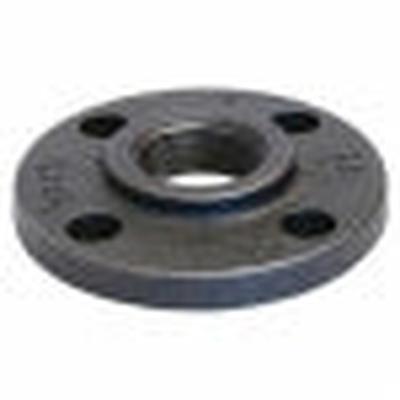

Anvil 1DX5.BCF 1-1/2 in Nominal Companion Flange 125 lb Replacement MPN

Product Description

The Anvil 1DX5.BCF is a companion flange designed for efficient connections in piping systems. This flange features a nominal size of one and one-half inches with a thread connection, making it suitable for various applications.

• Material: Cast Iron
• Pressure Class: 125 lb
• Temperature Rating: -20 to 150 degrees Fahrenheit

Product Highlights

This companion flange is crafted from durable cast iron and finished with black oxide for enhanced corrosion resistance. It is part of the FIG 1011 series, ensuring reliability in high-pressure applications.

Product Information

Standard Information

• Connection Type: Thread
• Finish: Black Oxide

Technical Specifications

• Hub Diameter: 2-9/16 inches
• Length Through Hub: 7/8 inches
• Nominal Size: 1-1/2 inches
• Outside Diameter: 5 inches
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD
• Thickness: 1-9/16 inches
