ANVIL 1DX1BX1.BMT 1-1/2 x 1-1/4 x 1 Black Malleable 150 lb FNPT Reducing Tee Domestic

Product Description

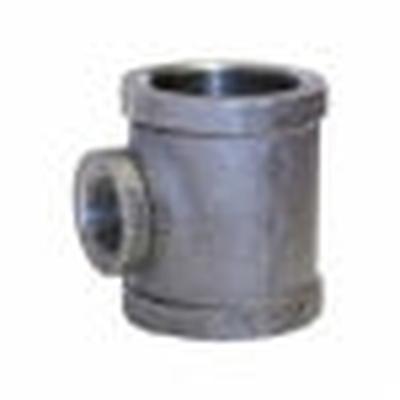

The ANVIL 1DX1BX1.BMT is a reducing tee designed for fluid direction changes in piping systems, particularly in plumbing and HVAC applications. This fitting is made from malleable iron with a black oxide finish. It meets the requirements for standard duty at a pressure rating of 150 pounds.

• Size: 1-1/2 inches x 1-1/4 inches x 1 inch FNPT
• Material: Malleable iron with black oxide coating
• Temperature Rating: -20 to 150 degrees Fahrenheit

Product Highlights

This reducing tee is suitable for various domestic applications, providing reliable connections while handling liquids in HVAC and plumbing systems.

Product Information

Standard Information

• Domestic/Import: Domestic
• End Style: FNPT

Technical Specifications

• Finish: Black Oxide
• Fitting/Connector Type: Tee
• Length: 3-3/16 inches
• Material: Malleable Iron
• Nominal Size: 1-1/2 x 1-1/4 x 1 inches
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105R
• Temperature Rating: -20 to 150 degrees Fahrenheit
• Type: Standard
