ANVIL 1D.N300T 1-1/2 in Galvanized 300# FNPT Tee Domestic

Product Description

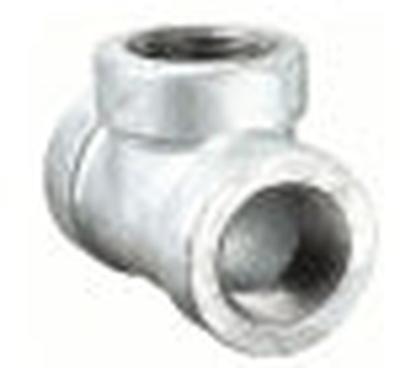

The ANVIL 1D.N300T is a 1-1/2 inch galvanized FNPT tee fitting, designed for both domestic applications and high-pressure systems. This tee is made from malleable iron and is galvanized for durability. It can sustain pressure up to fifteen hundred PSI and is rated for a temperature range from negative twenty to one hundred fifty degrees Fahrenheit.

• Material: Malleable Iron
• Pressure Class: 300 lb
• Temperature Range: -20 to 150 degrees Fahrenheit

Product Highlights

This tee fitting is ideal for creating connections in piping systems. It is used widely in HVAC, plumbing, and industrial applications.

Product Information

Standard Information

• End Style: FNPT
• Series: FIG 1164

Technical Specifications

• Nominal Size: 1-1/2 inches
• Pressure Rating: 1500 psi
• Schedule Rating: SCH 80/XS, SCH 80/XH
• Finish: Galvanized
• Temperature Rating: -20 to 150 degrees Fahrenheit
• Weight: 3.5 lb
• Dimensions: 4.4 inches length, 2.9 inches width, 1.5 inches height
