ANVIL 1D.BMFF Floor Flange 1-1/2 in Nominal Replacement MPN

Product Description

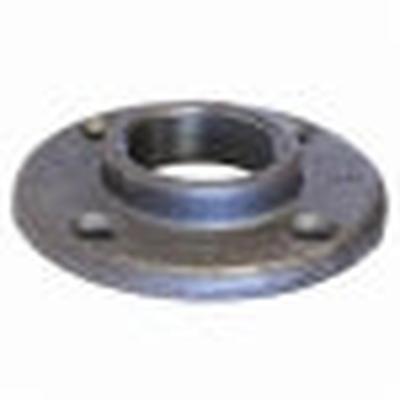

The ANVIL Floor Flange, MPN 1D.BMFF, offers a reliable connection point for piping systems. This flange is designed to fit nominal pipe sizes of one and one-half inches and accommodates four bolt holes.

• Constructed from durable malleable iron
• Rated for a pressure class of 150 lb
• Suitable for temperature range -20 to 350 degrees Fahrenheit

Product Highlights

This floor flange is part of the FIG 1190 series and features a black oxide finish for enhanced corrosion resistance.

Product Information

Standard Information

• Brand: ANVIL
• MPN: 1D.BMFF

Technical Specifications

• Nominal Size: 1-1/2 in
• Bolt Circle Diameter: 3-1/2 in
• Bolt Hole Size: 5/16 in
• Outside Diameter: 4-1/2 in
• Number of Bolt Holes: 4
• Pressure Rating: 300 psi
• Temperature Rating: -20 to 350 deg F
• Domestic/Import: Domestic
