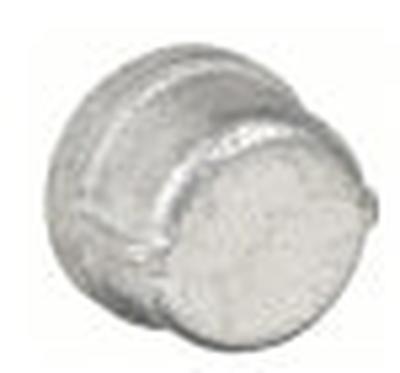

ANVIL 1.N300CAP 1 In Galvanized 150# FNPT Cap Domestic

Product Description

The ANVIL 1.N300CAP is a one inch galvanized cap used in various piping systems. It is designed for high-pressure applications and is made from malleable iron for strength and durability. The product is suitable for use with a pressure class of 300 pounds per square inch, ensuring reliability in demanding environments.

• Cap fitting for nominal one inch size
• Made of galvanized malleable iron
• Temperature rated from -20 to 150 degrees Fahrenheit

Product Highlights

The ANVIL cap fitting is ideal for joining pipes in a secure manner while allowing for pressure retention.

Product Information

Standard Information

• Domestic/Import: Domestic
• End Style: Thread

Technical Specifications

• Finish: Galvanized
• Fitting/Connector Type: Cap
• Length: 1-1/4 inches
• Material: Malleable Iron
• Nominal Size: 1 inch
• Pressure Class: 300 lb
• Pressure Rating: 2000 psi
• Schedule Rating: SCH 80/XS, SCH 80/XH
• Series: FIG 1163
• Temperature Rating: -20 to 150 degrees Fahrenheit
