ANVIL 1.B300S45L 1 in Black Malleable MNPT x FNPT, 300 lb St Elbow Domestic

Product Description

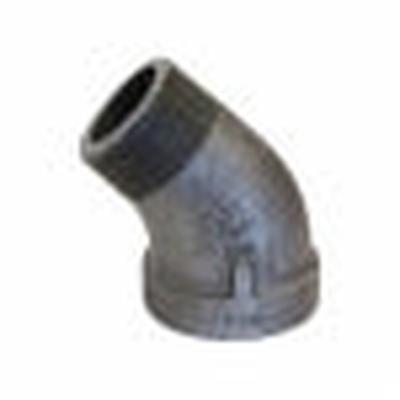

The ANVIL 1.B300S45L is a black malleable iron street elbow fitting. It features a 45-degree angle design with MNPT x FNPT ends. This elbow is suitable for various plumbing needs, capable of handling up to 2000 psi pressure. The product is ideal for both domestic and import applications in residential or commercial settings.

• Material: Malleable iron with a black oxide finish
• Temperature range: -20 to 150 degrees Fahrenheit
• Pressure class: 300 lb with a maximum pressure rating of 2000 psi

Product Highlights

Use this elbow fitting for effective piping transitions. It is designed for easy installation in various plumbing systems.

Product Information

Standard Information

• Brand: ANVIL
• Domestic/Import: Domestic

Technical Specifications

• End Style: MNPT x FNPT
• Fitting/Connector Type: 45 degrees elbow
• Nominal Size: 1 inch
• Pressure Class: 300 lb
• Pressure Rating: 2000 psi
• Series: FIG 1160
• Temperature Rating: -20 to 150 degrees Fahrenheit
