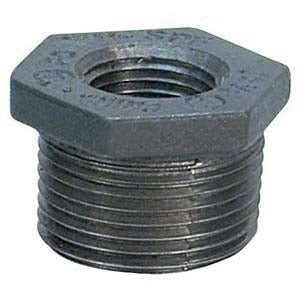

Anvil 0840600027 Black Ductile Iron Outside Head Hex Bushing 1-1/4 x 1 in

Product Description

The Anvil 0840600027 is a black ductile iron outside head hex bushing. This fitting features a connection size of one and one-fourth inches by one inch, with MNPT to FNPT connection types. It is designed to meet the specifications of ASME B16.3 and ASME B16.14.

• Ductile iron construction for durability
• Pressure rating of 500 psi
• Conforms to industry standards and certifications

Product Highlights

The Anvil 0840600027 is suited for various plumbing and piping applications. Its robust design ensures a secure connection under pressure.

Product Information

Standard Information

• Brand: Anvil
• Manufacturer: Anvil International

Technical Specifications

• Connection Size: 1-1/4 x 1 in
• Connection Type: MNPT x FNPT
• Finish: Black
• Item Name: Hex Bushing
• Length: 1.08 in
• Material: Ductile Iron
• Model: 3283
• Pressure Rating: 500 psi
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: ASME B16.14, ASME B1.20.1, cULus listed, FM approved
