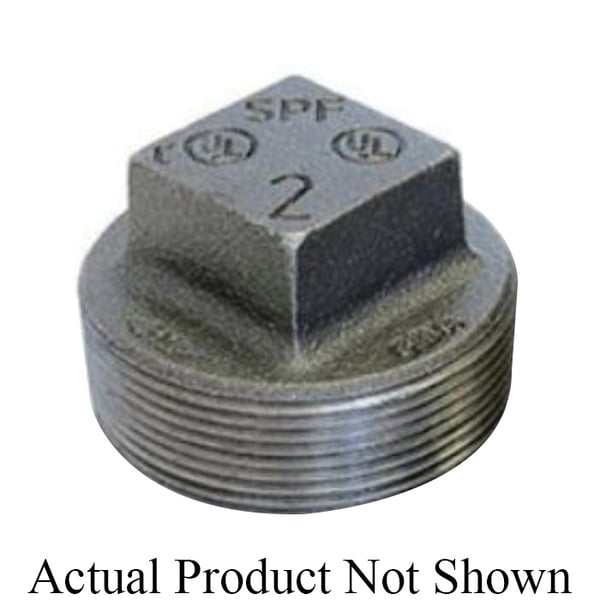

Anvil 0840006084 FIG 3388 Square Head Cored Plug 1-1/2 in Nominal

Product Description

The ANVIL 0840006084 FIG 3388 is a square head cored plug with a 1-1/2 in nominal size and NPT end style. Constructed from ductile iron and finished in black, this plug is suitable for various piping applications. It conforms to ASME B16.3 dimensions and features threads per ANSI/ASME B1.20.1.

• 1-1/2 in nominal size
• Constructed from ductile iron
• NPT end style

Product Highlights

Ductile iron plug with NPT end style, suitable for connecting and sealing pipe ends in various plumbing and piping systems.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0840006084

Technical Specifications

• Series: FIG 3388
• Type: Square Head
• Nominal Size: 1-1/2 in
• End Style: NPT
• Schedule Rating: SCH 40/STD
• Pressure Rating: 500 psi
• Material: Ductile Iron
• Finish: Black
• Fitting/Connector Type: Plug
• Standards and Approvals: ANSI/ASME B1.20.1, ASME B16.14, ASTM A536 Grade 65-45-12, cULus Listed, FM Approved, UL/ULC Listed
